Wheelhouse Studio





























Epic Home Studio Tour
Nickolas Wheeler
About the Client
Nick Wheeler is a multi-instrumentalist, songwriter, and producer best known as the lead guitarist and co-founder of the platinum-selling rock band The All-American Rejects. With decades of touring and recording experience, Nick has shifted much of his creative focus to composing, producing, and collaborating from his personal studio. He approached Audio Virtue to design a space that could support high-end production, mixing, and live instrumentation in a quiet, immersive environment—tailored to both his workflow and his signature sound.
Studio Overview

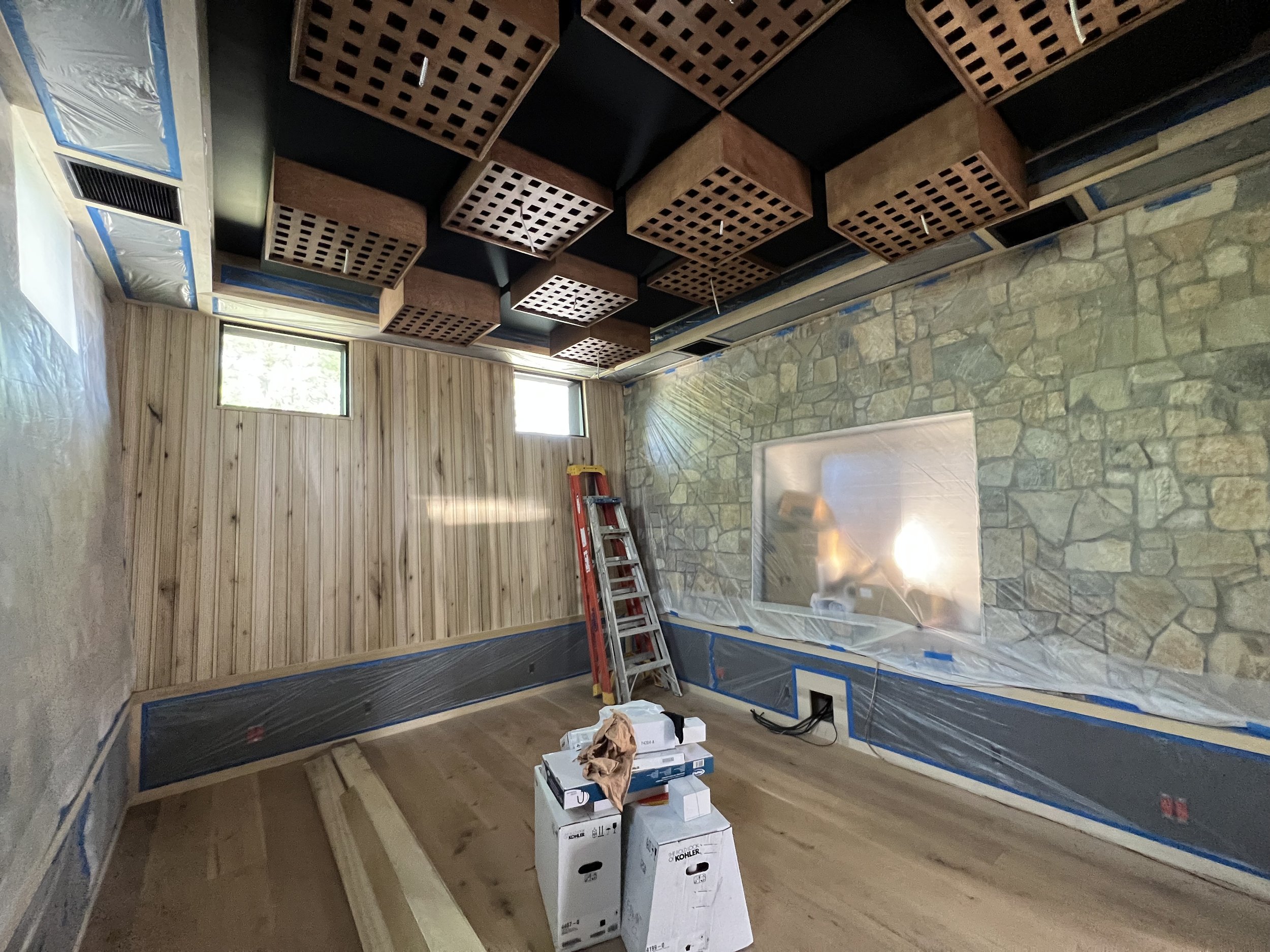

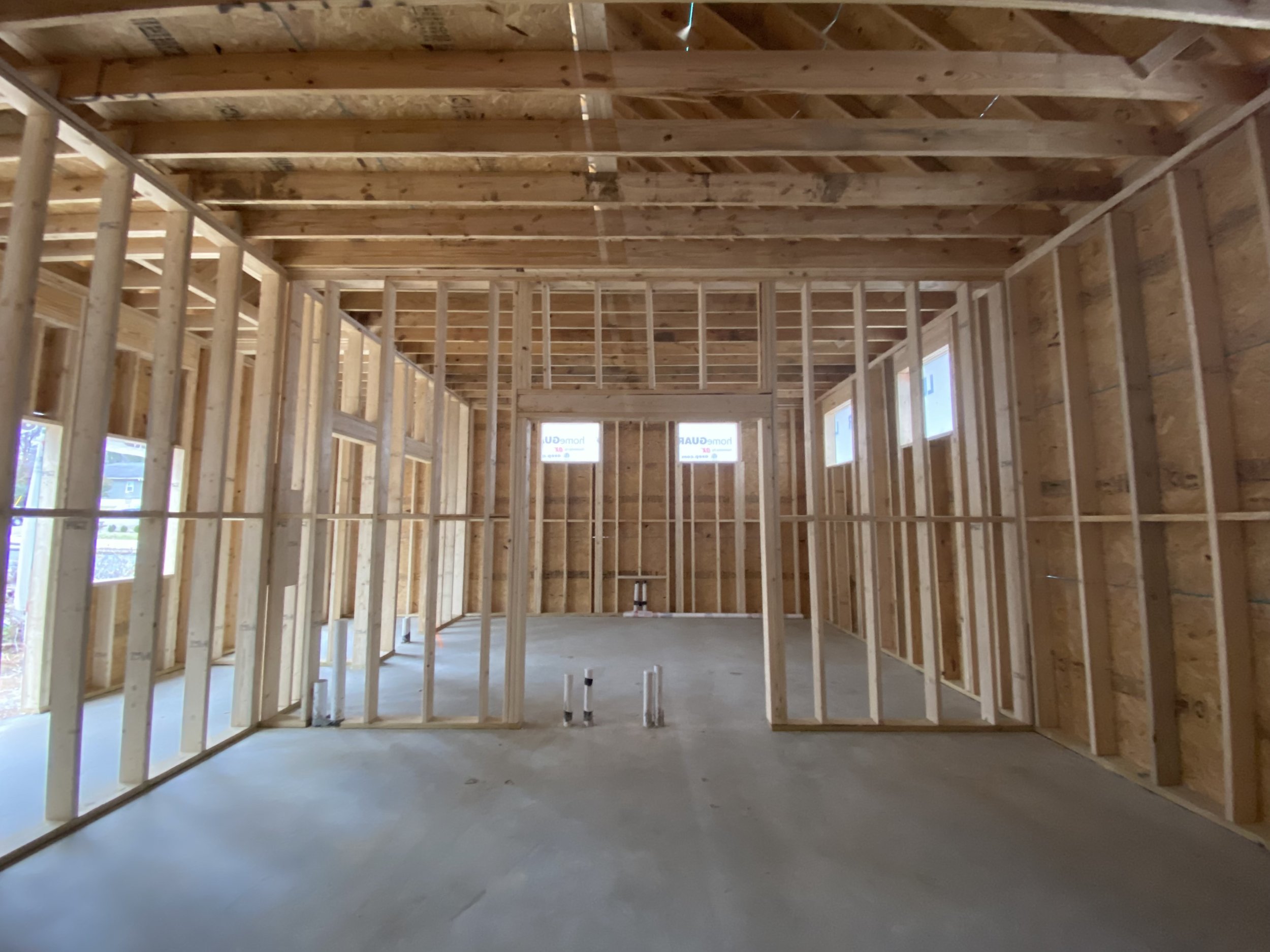

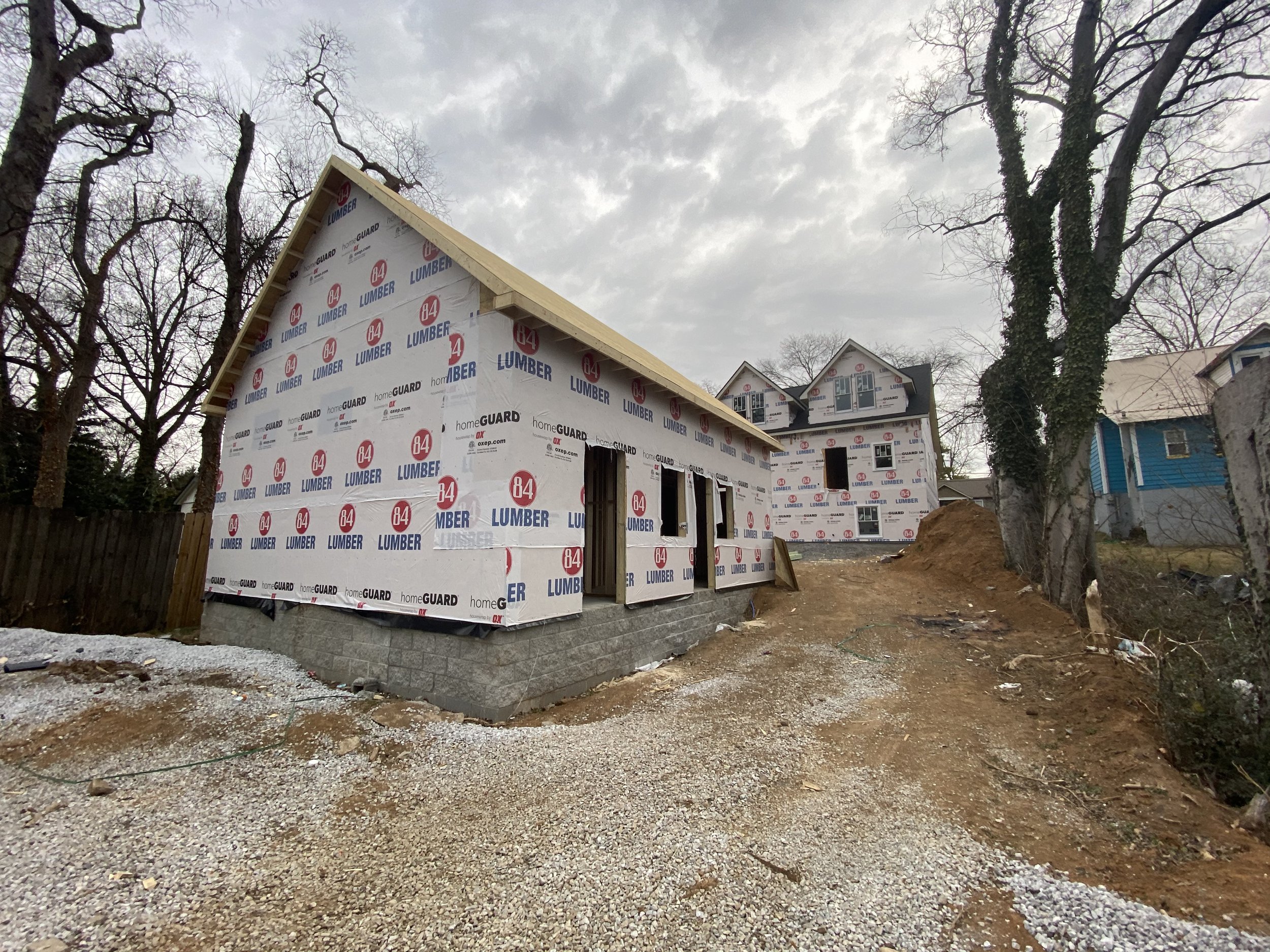

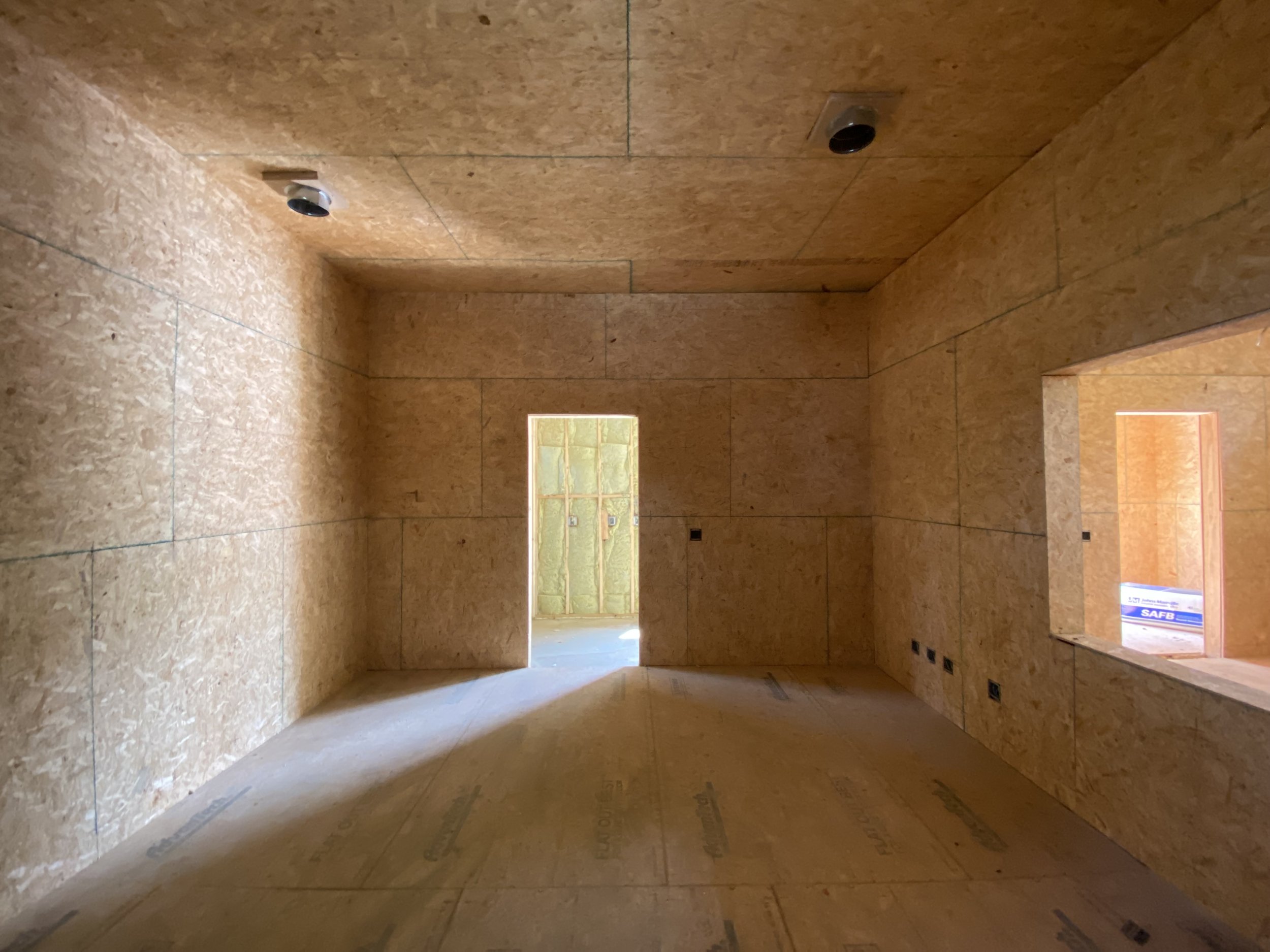

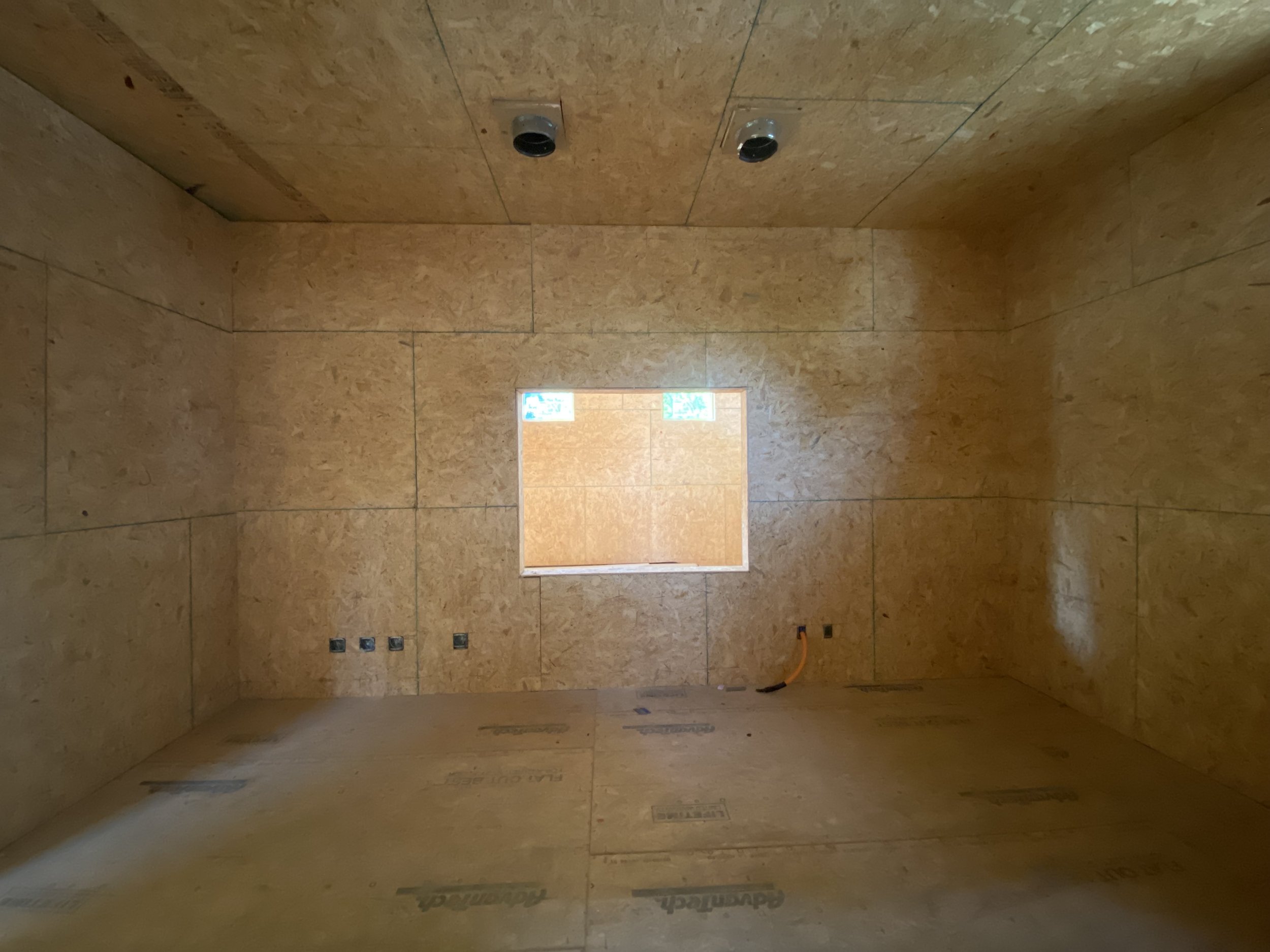

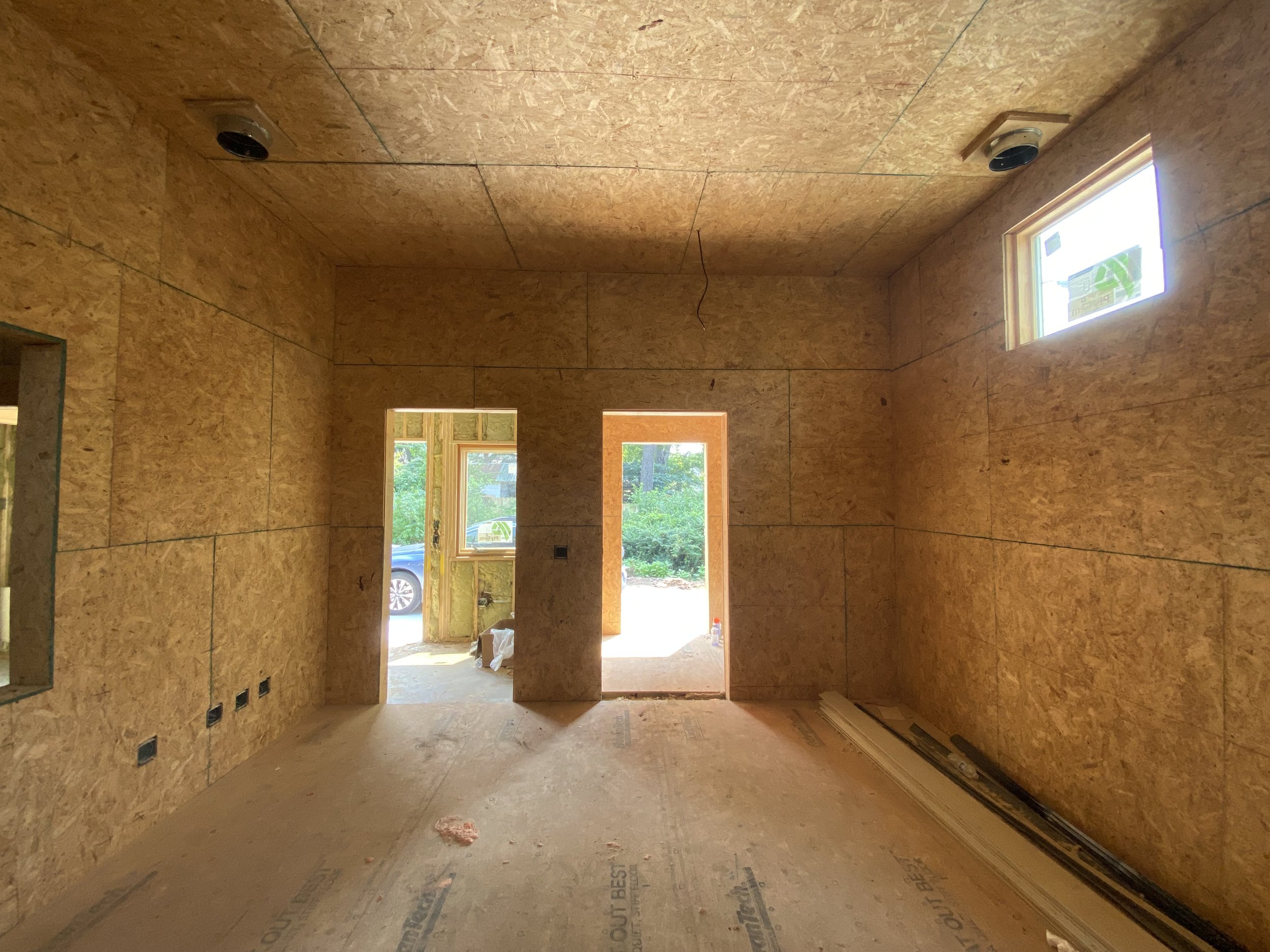

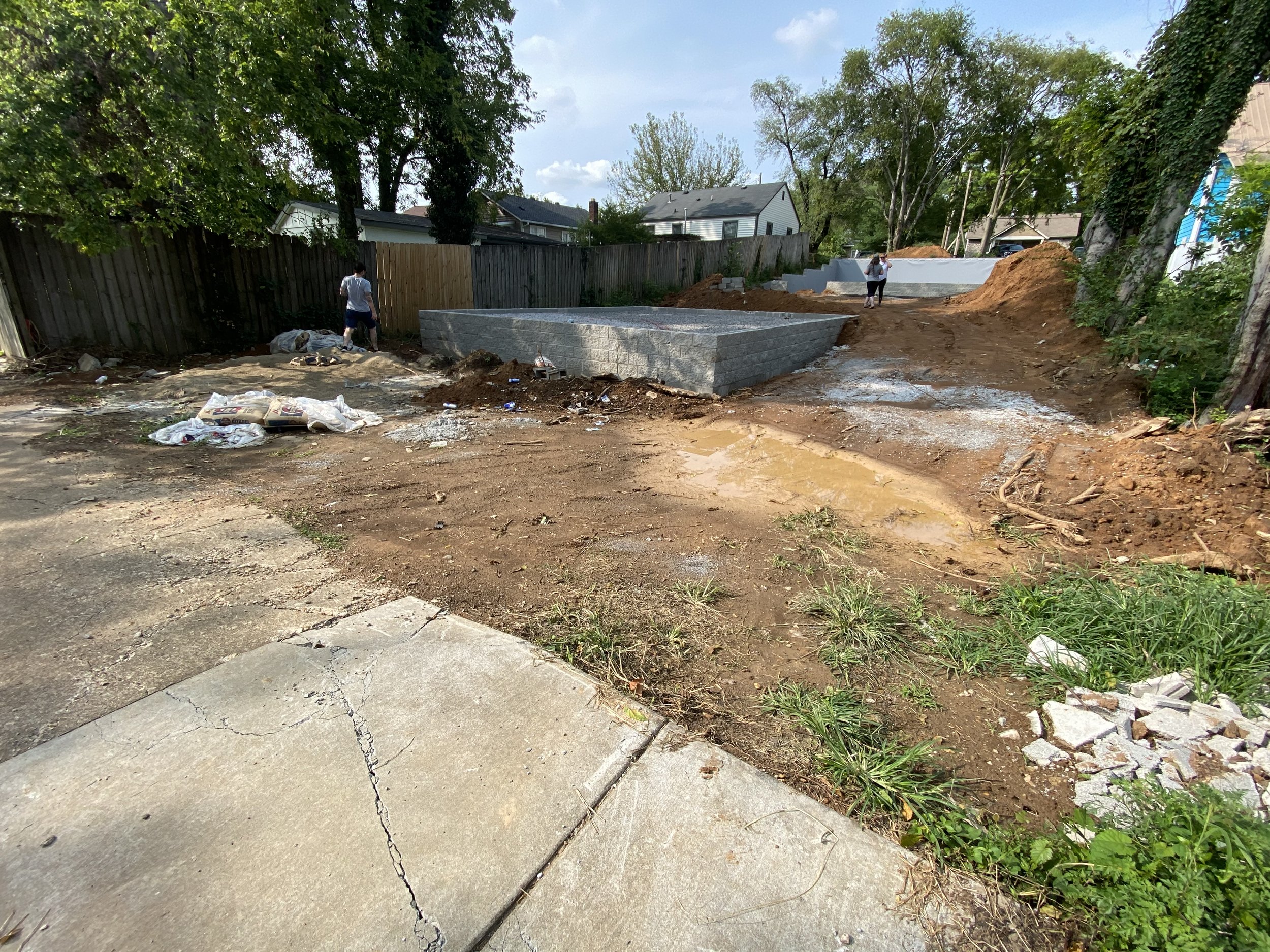

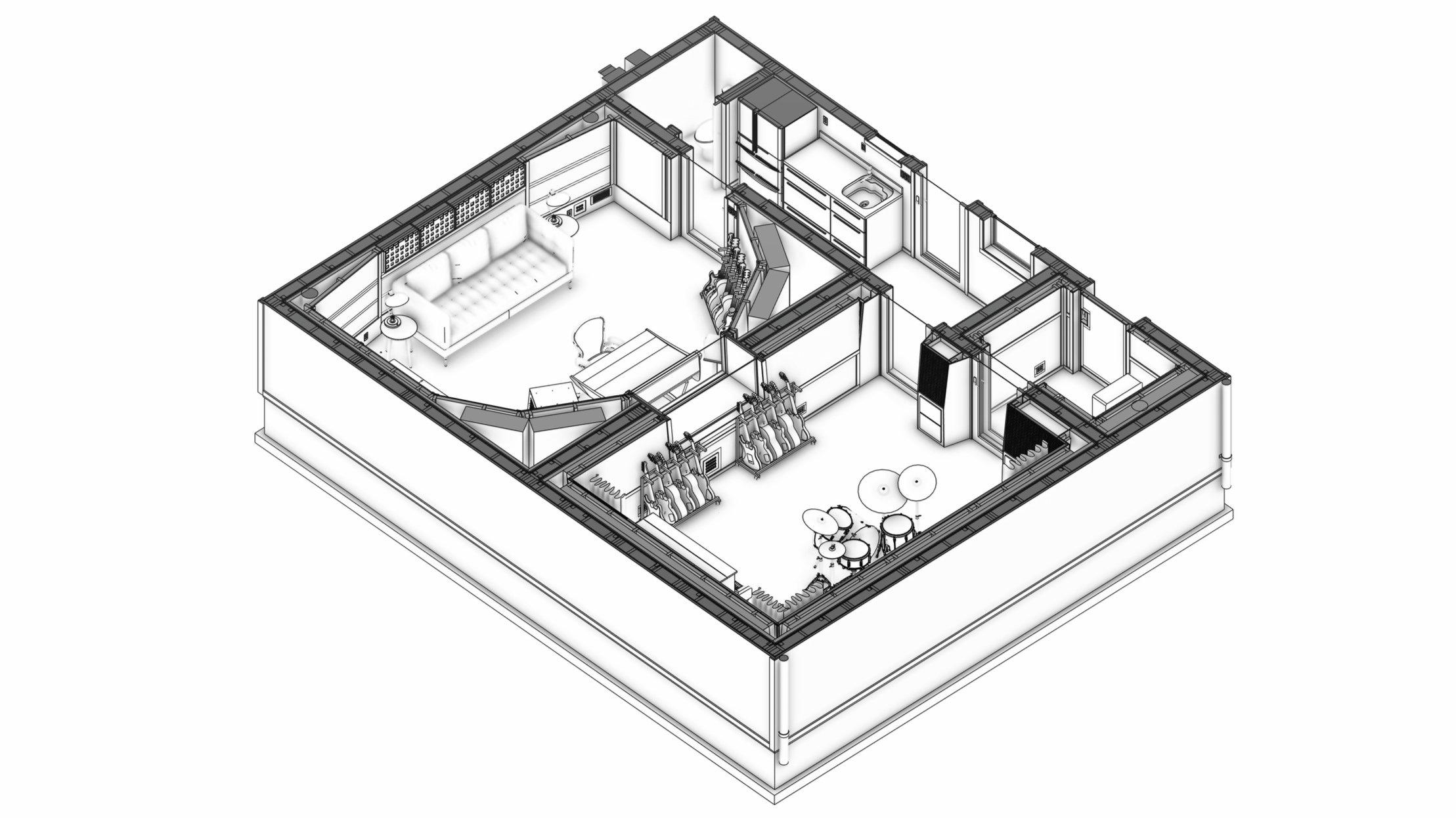

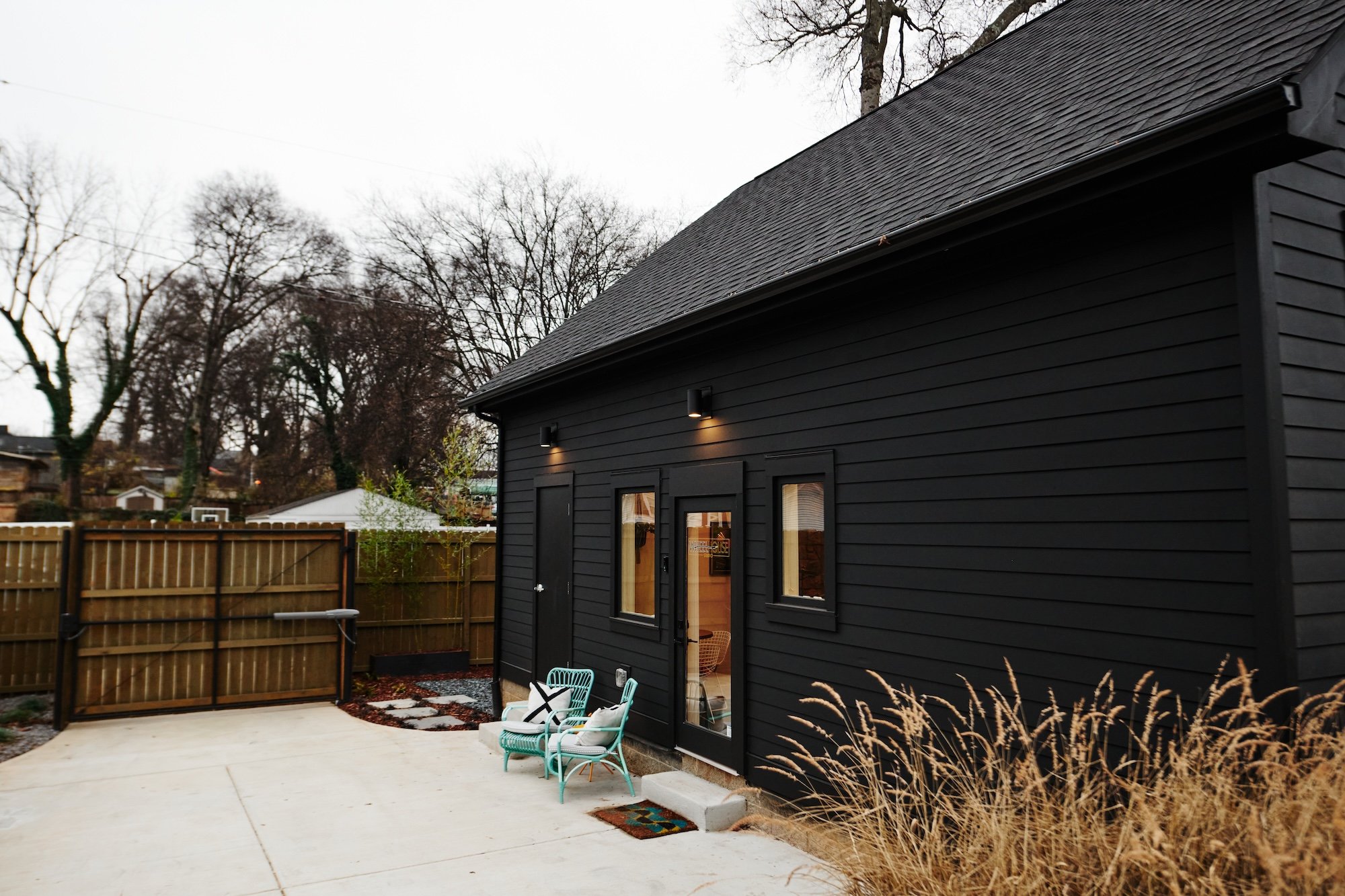

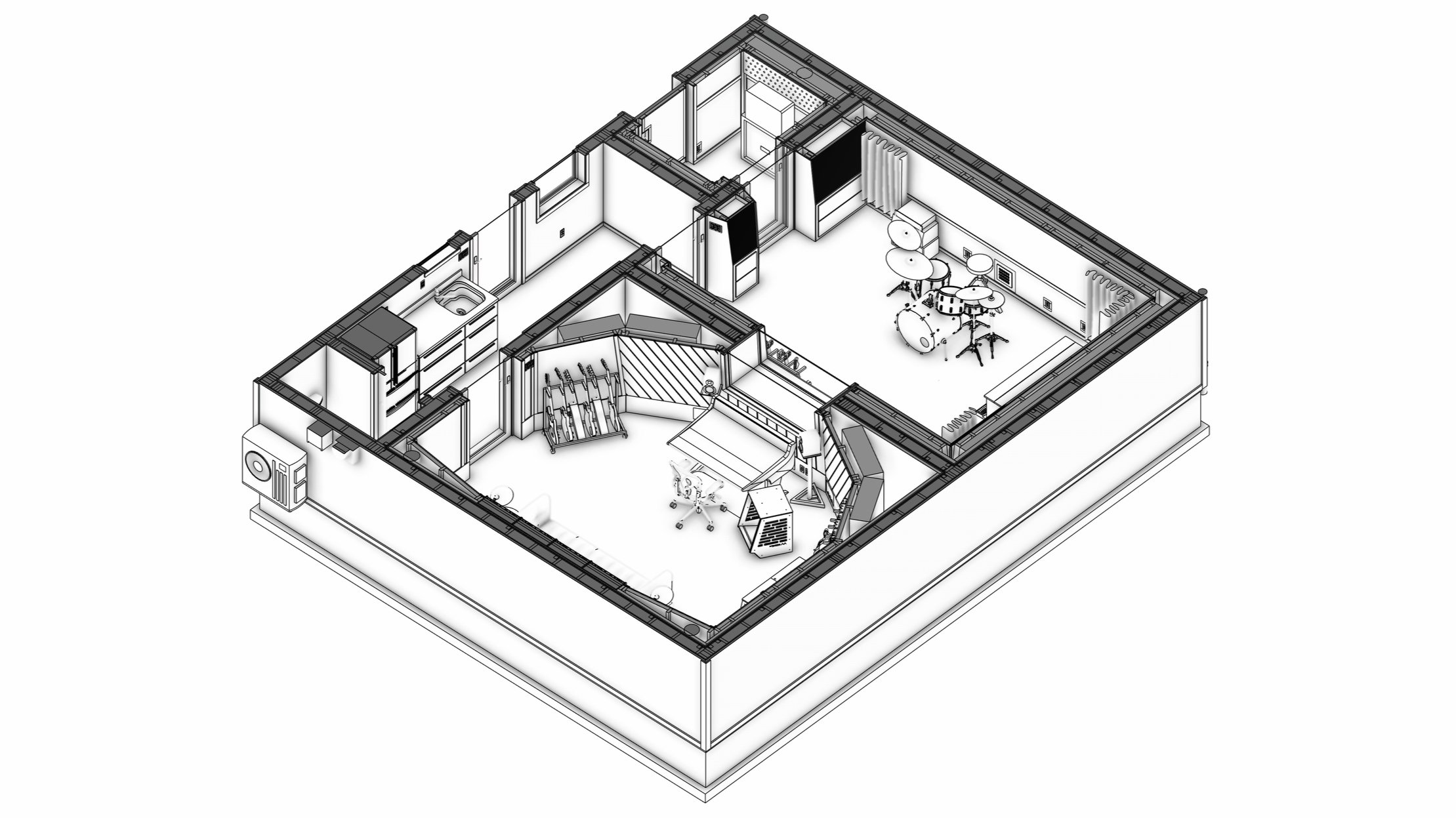

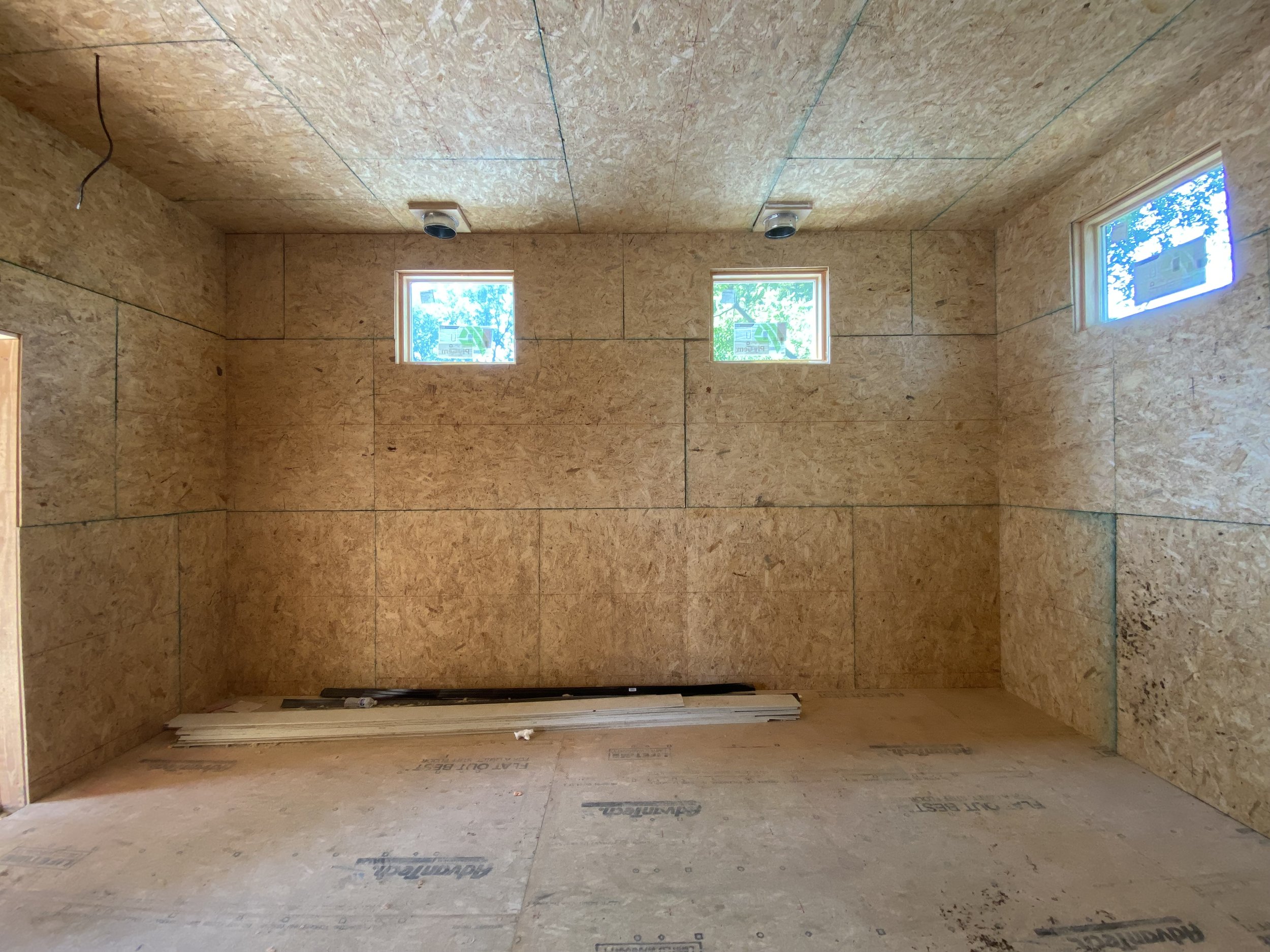

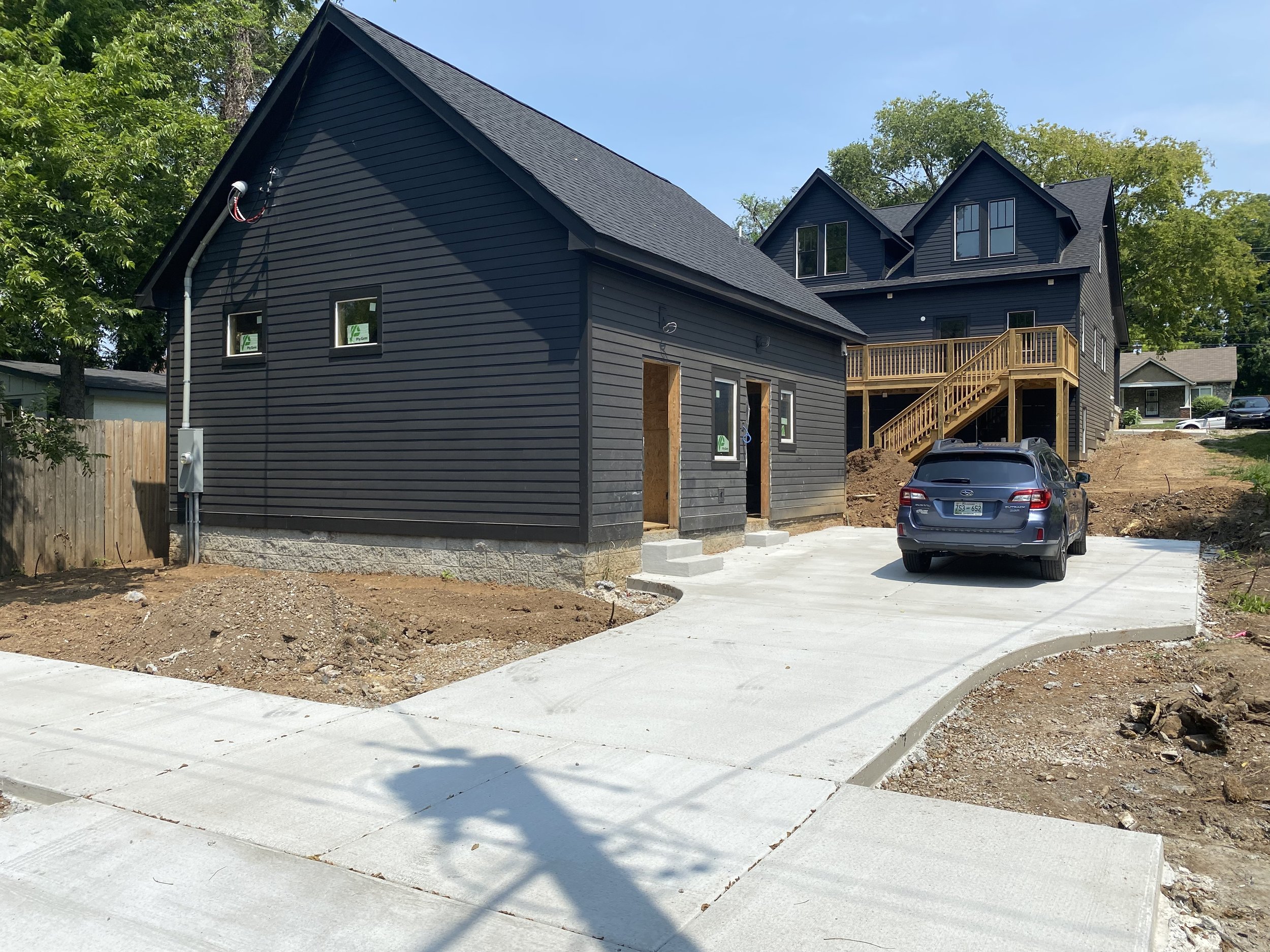

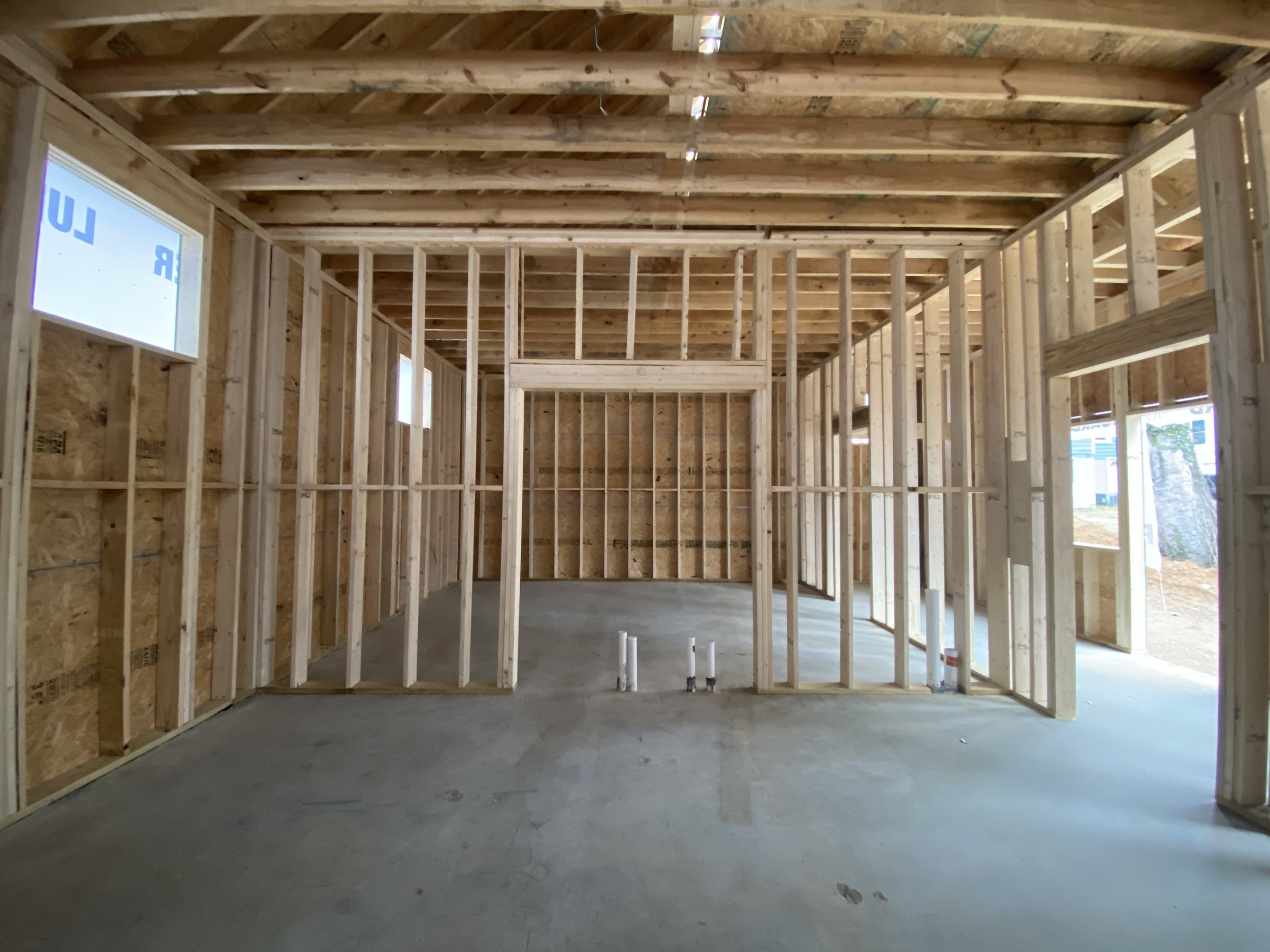

This project was a ground-up studio build located in the backyard of a newly constructed home, with the house and studio designed and built simultaneously. Zoning and code restrictions limited the footprint to 750 square feet, which needed to accommodate a fully functional control room, live tracking room, amp booth, kitchenette, and full bathroom. Situated just 30 feet from a major four-lane highway, the structure required a robust sound isolation strategy. The design challenge was to create a space that felt and functioned like a large-format LA studio—despite the modest footprint—by maximizing acoustic volume, spatial layout, and aesthetic continuity with the main residence.
About the studio:
Location: Nashville, TN
Size: 750 sqft

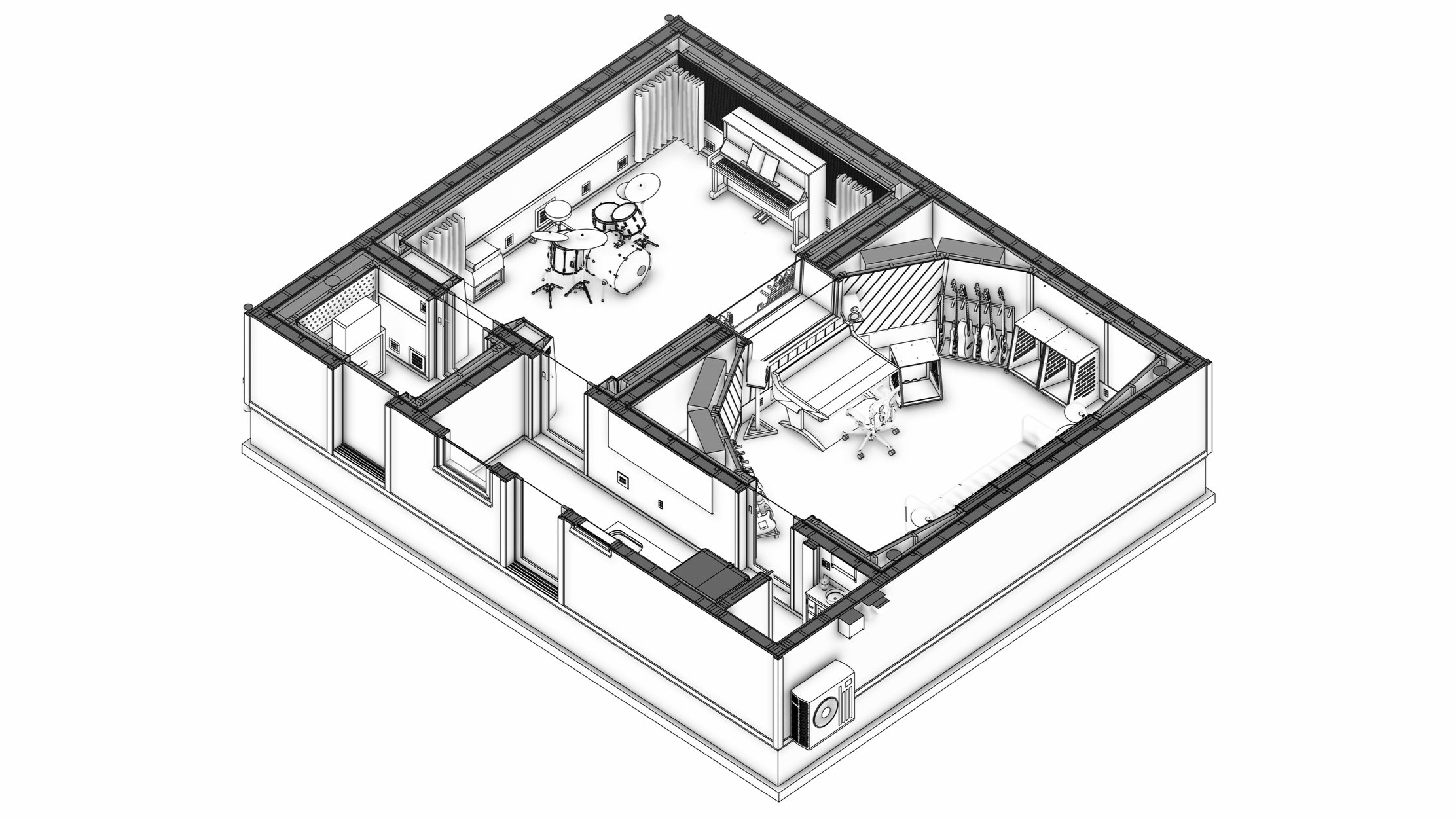

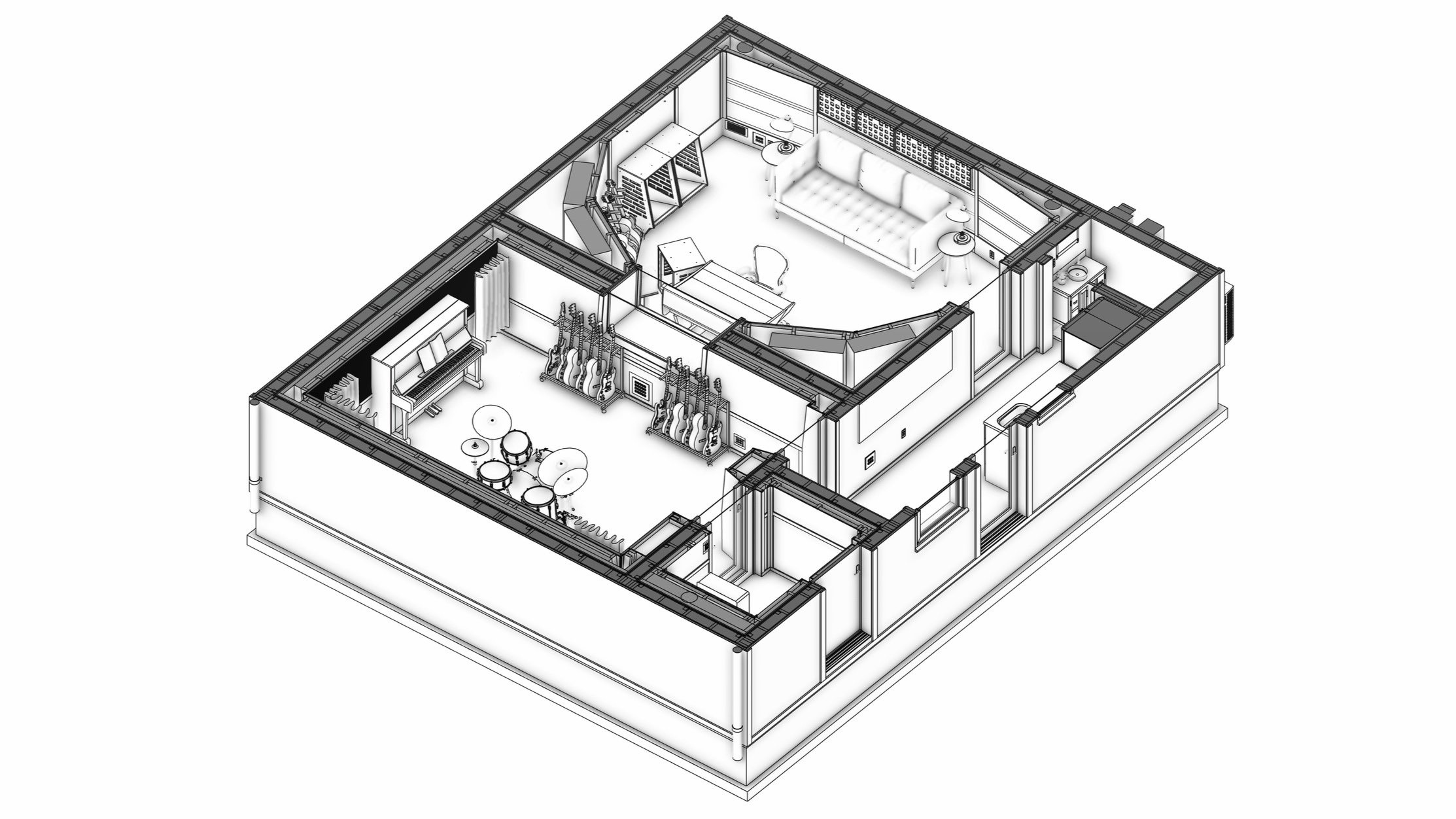

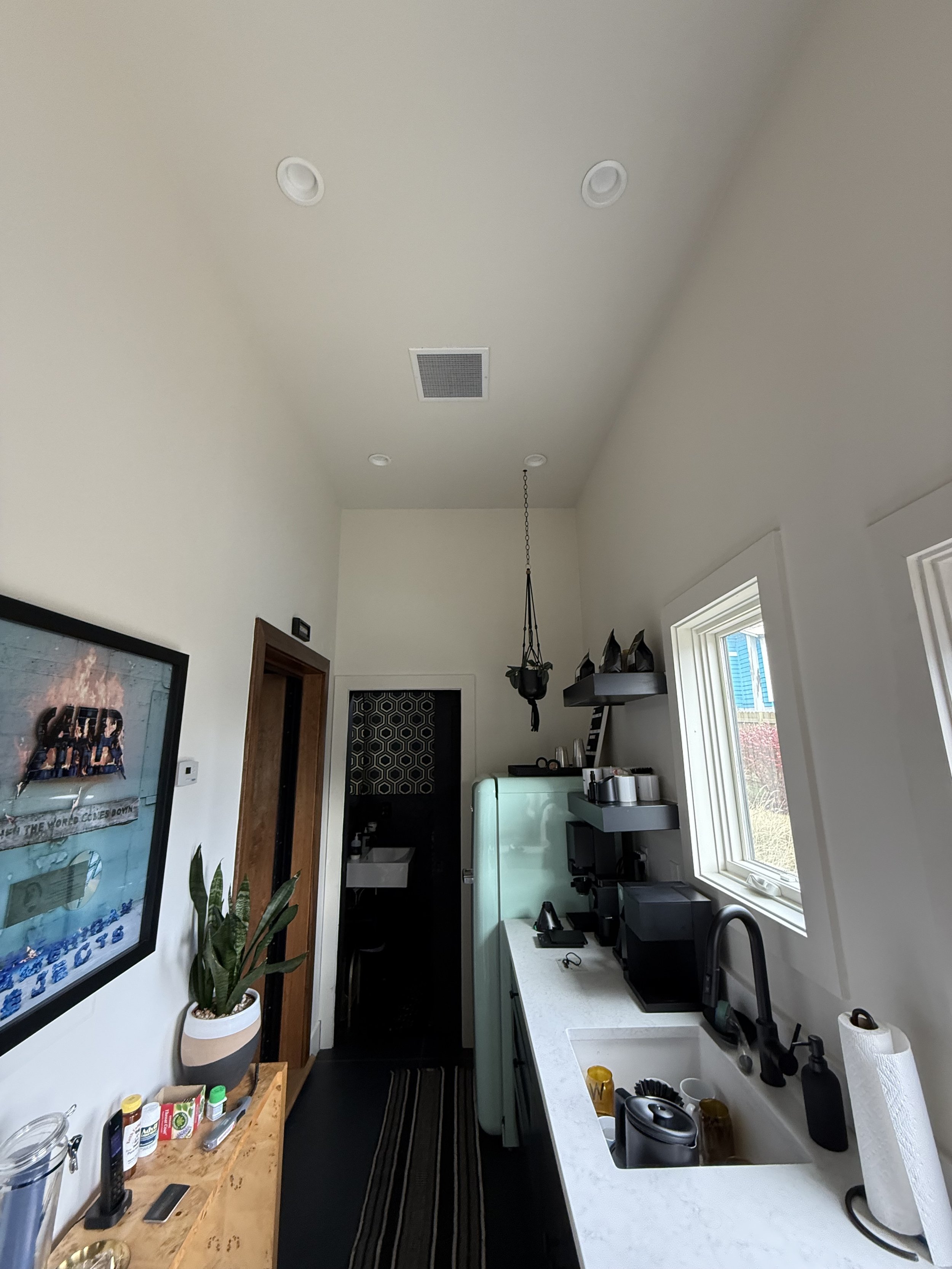

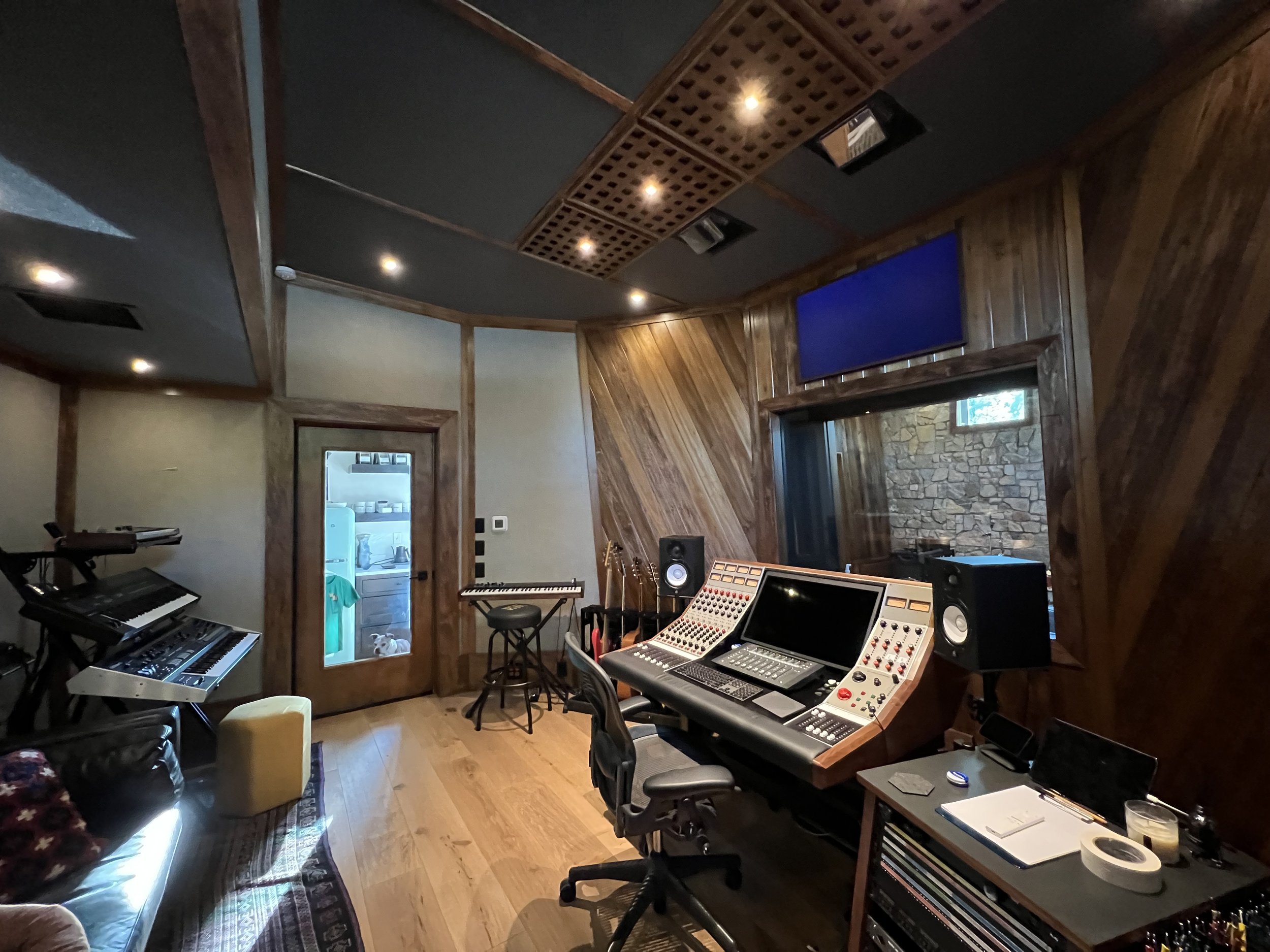

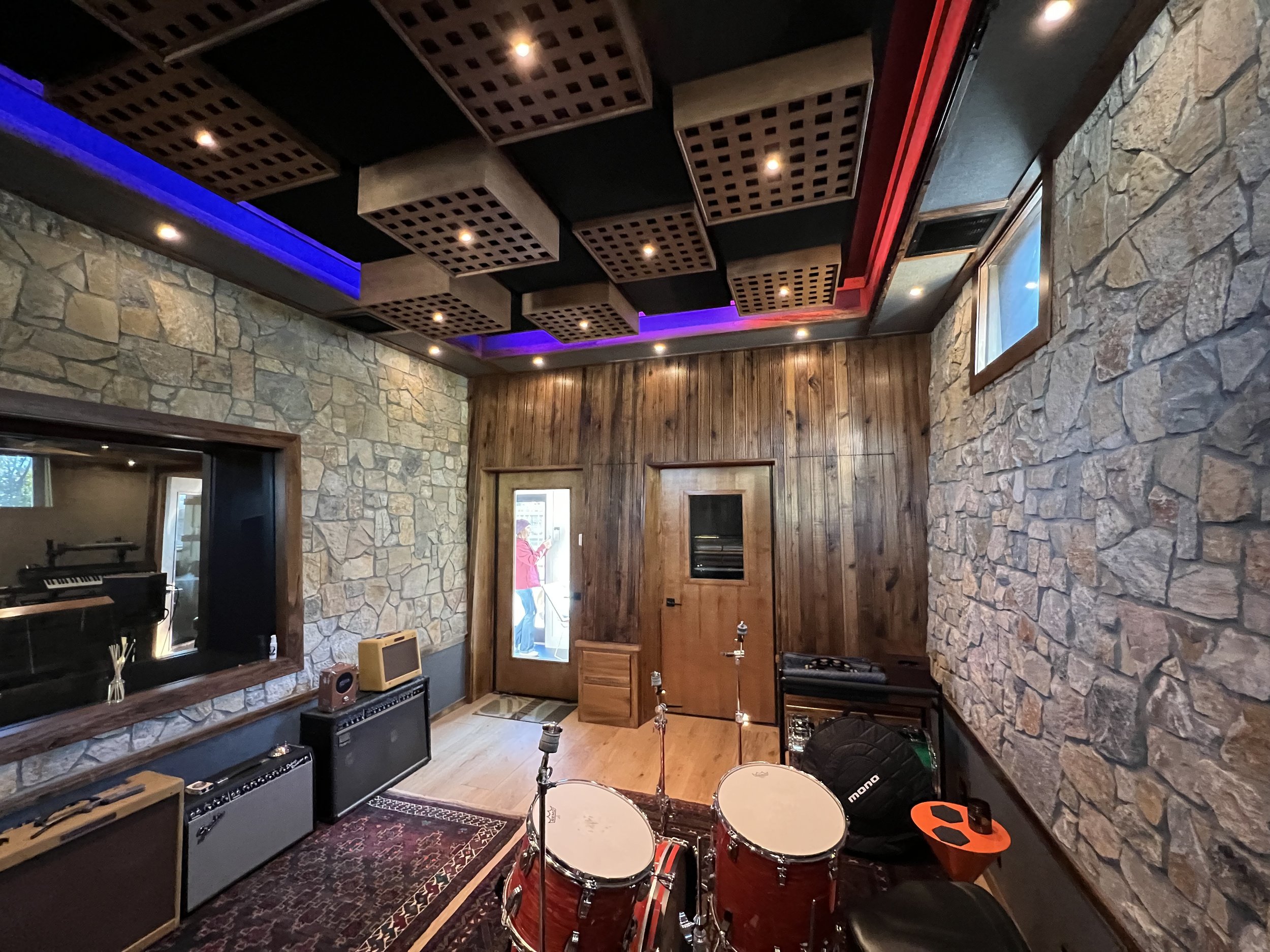

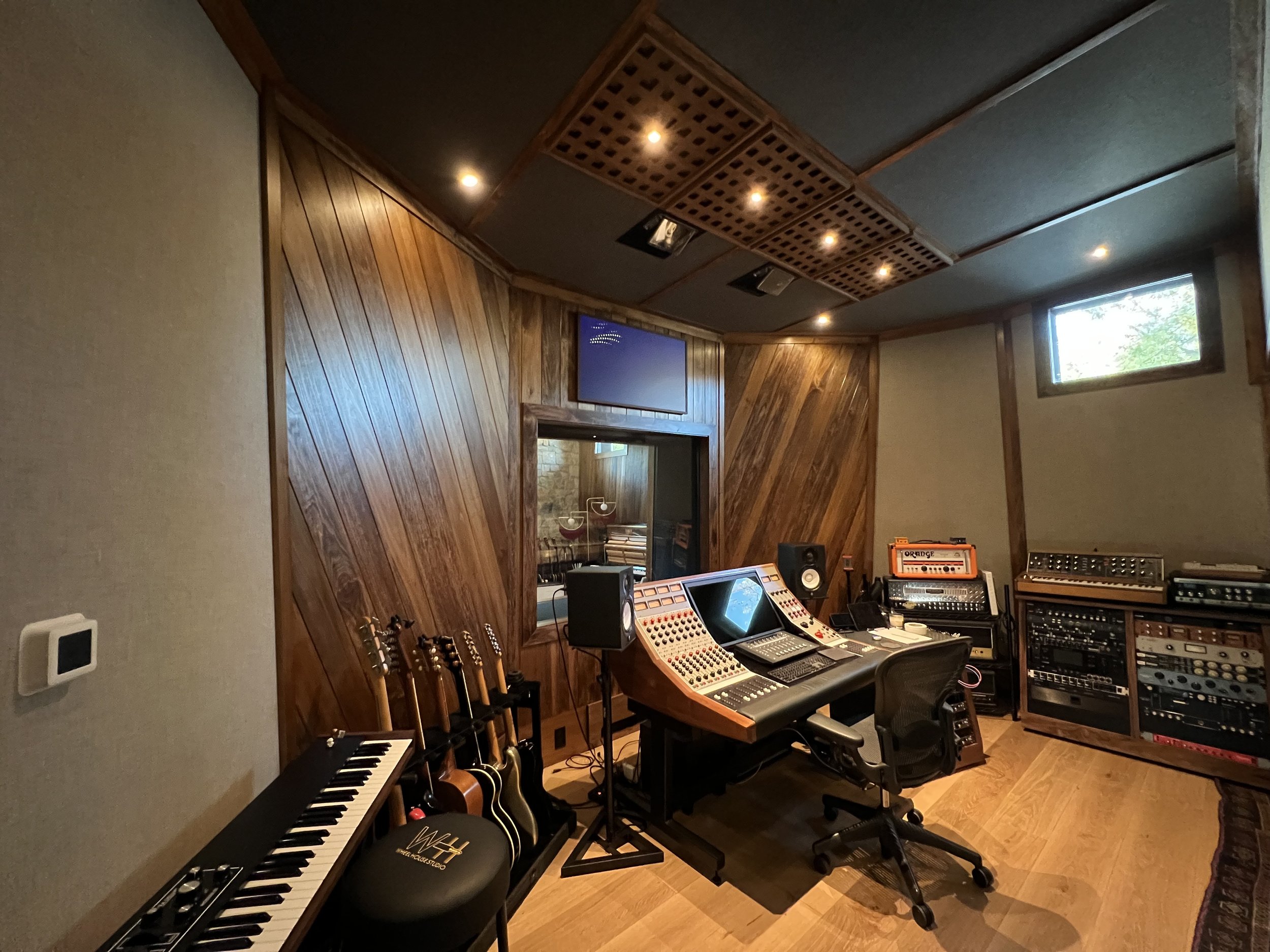

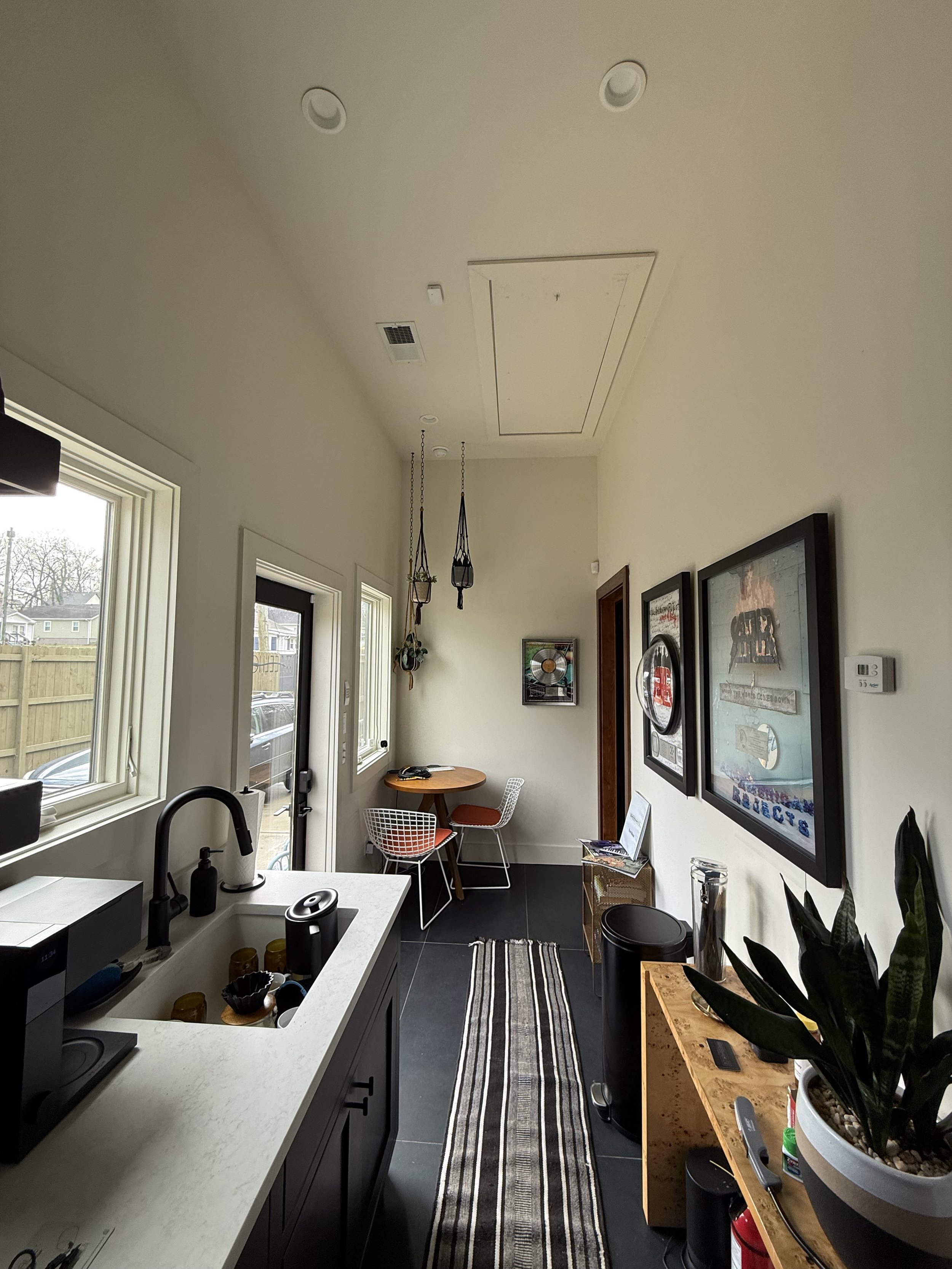

Rooms: Control / Mix / Mastering Room (263 sqft), Live Tracking / Drum Room (251 sqft) , Iso Booth (49 sqft), Kitchen, Bath
Standards Achieved:
Sound Isolation: STC 70 with 30dB reduction at 63Hz - structure sits 30ft from business 4 lane road

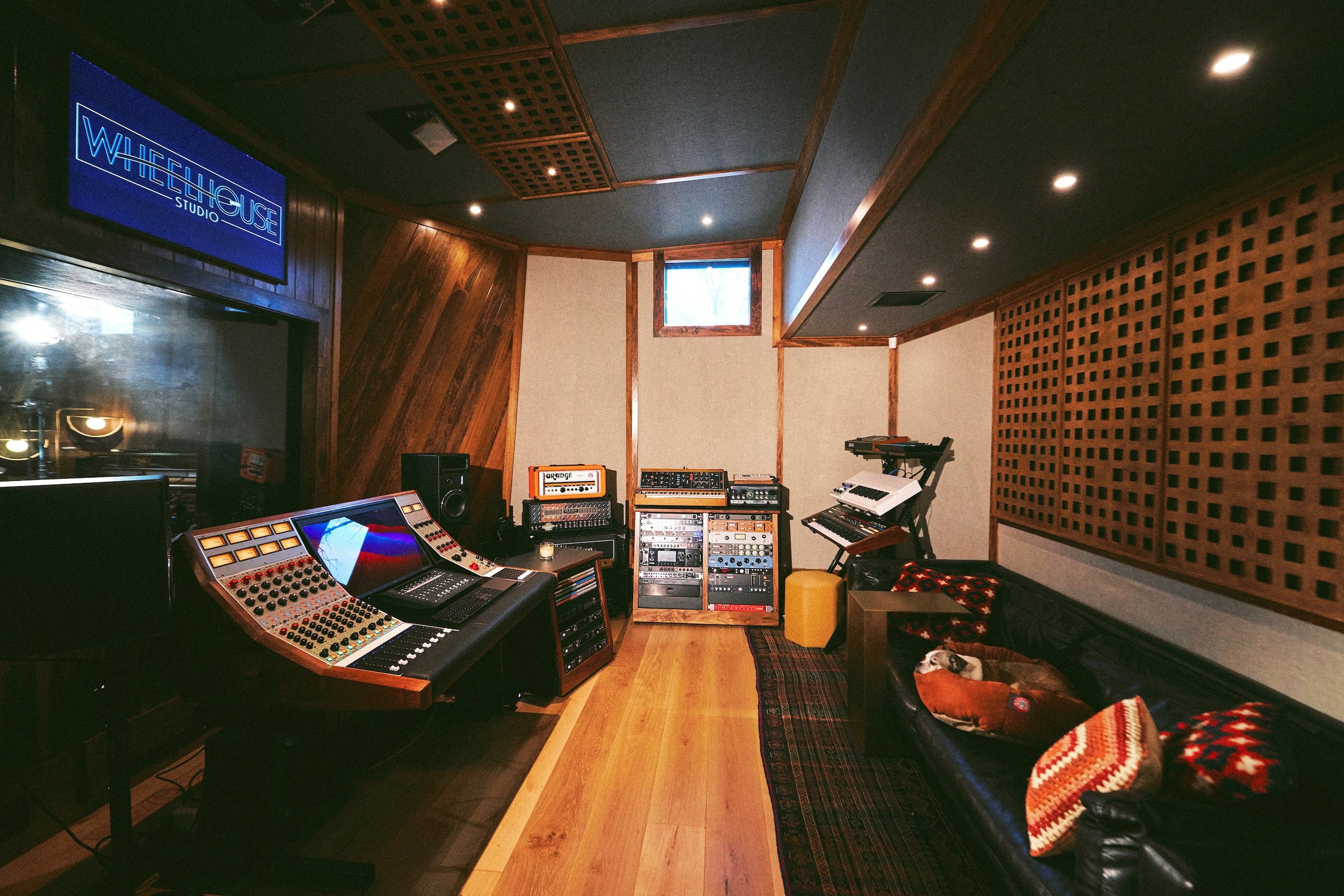

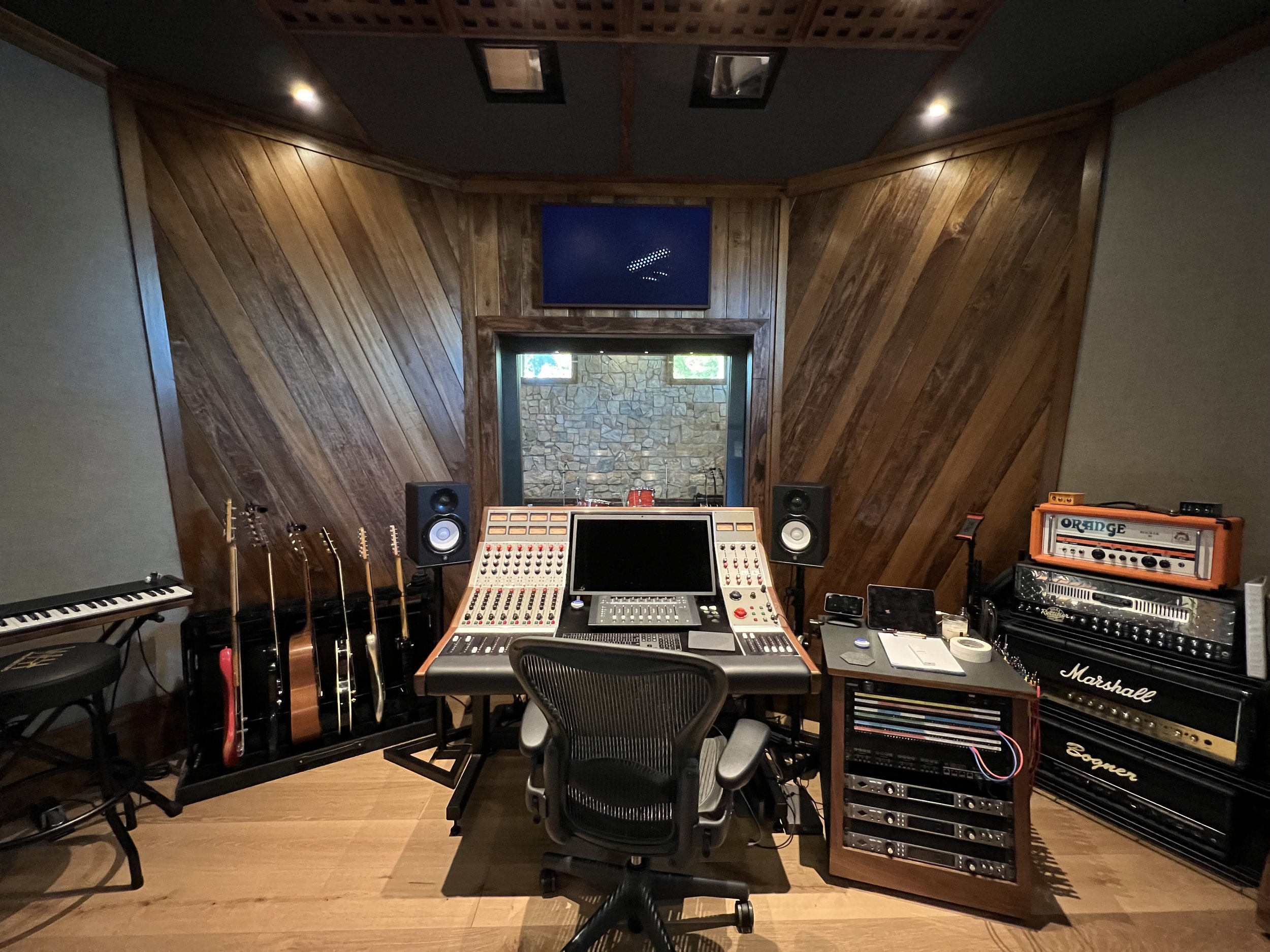

Control Room Acoustics: +/- 6dB Very Flat Frequency Response from 20Hz - 100Hz (+/- 3dB above 100Hz)

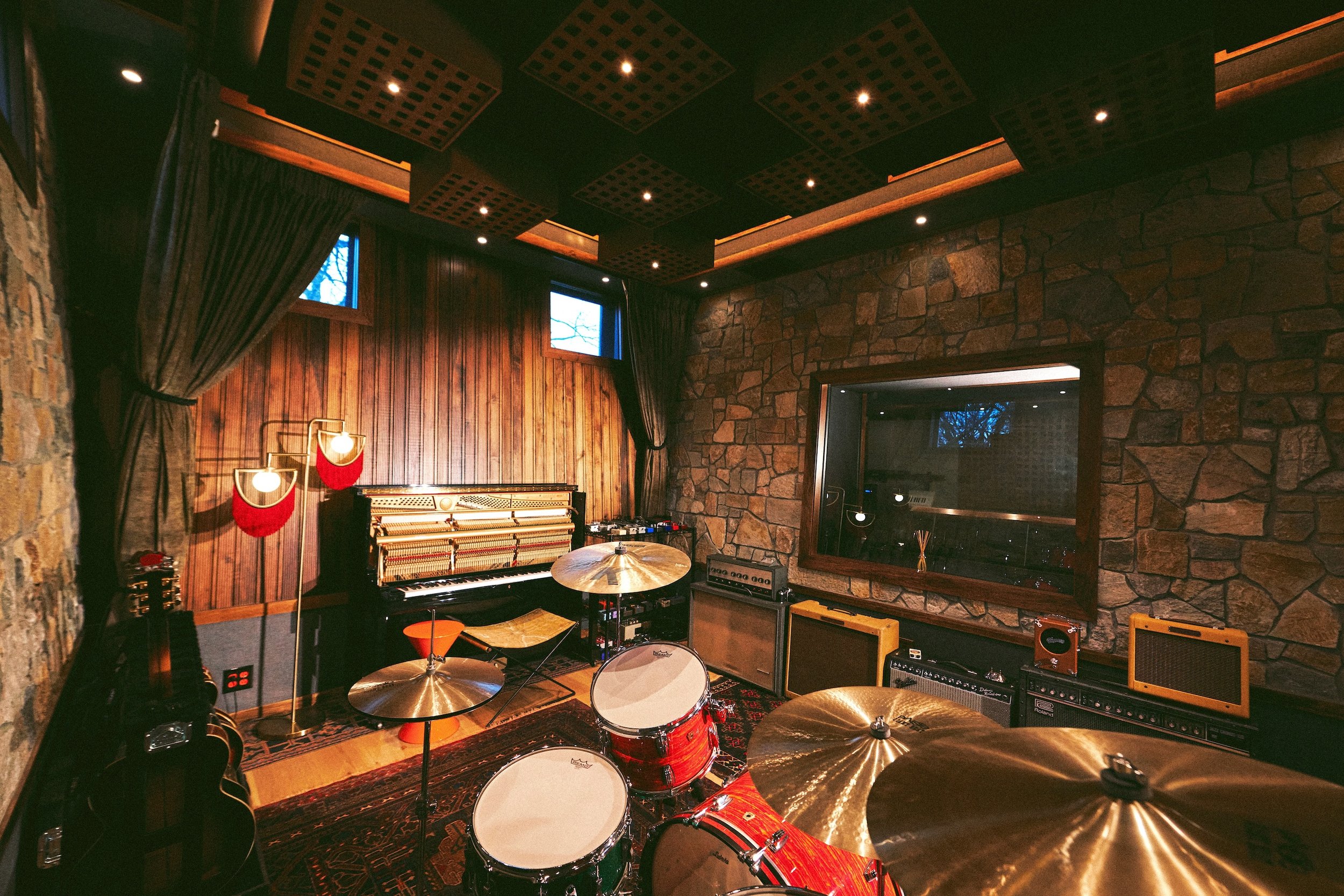

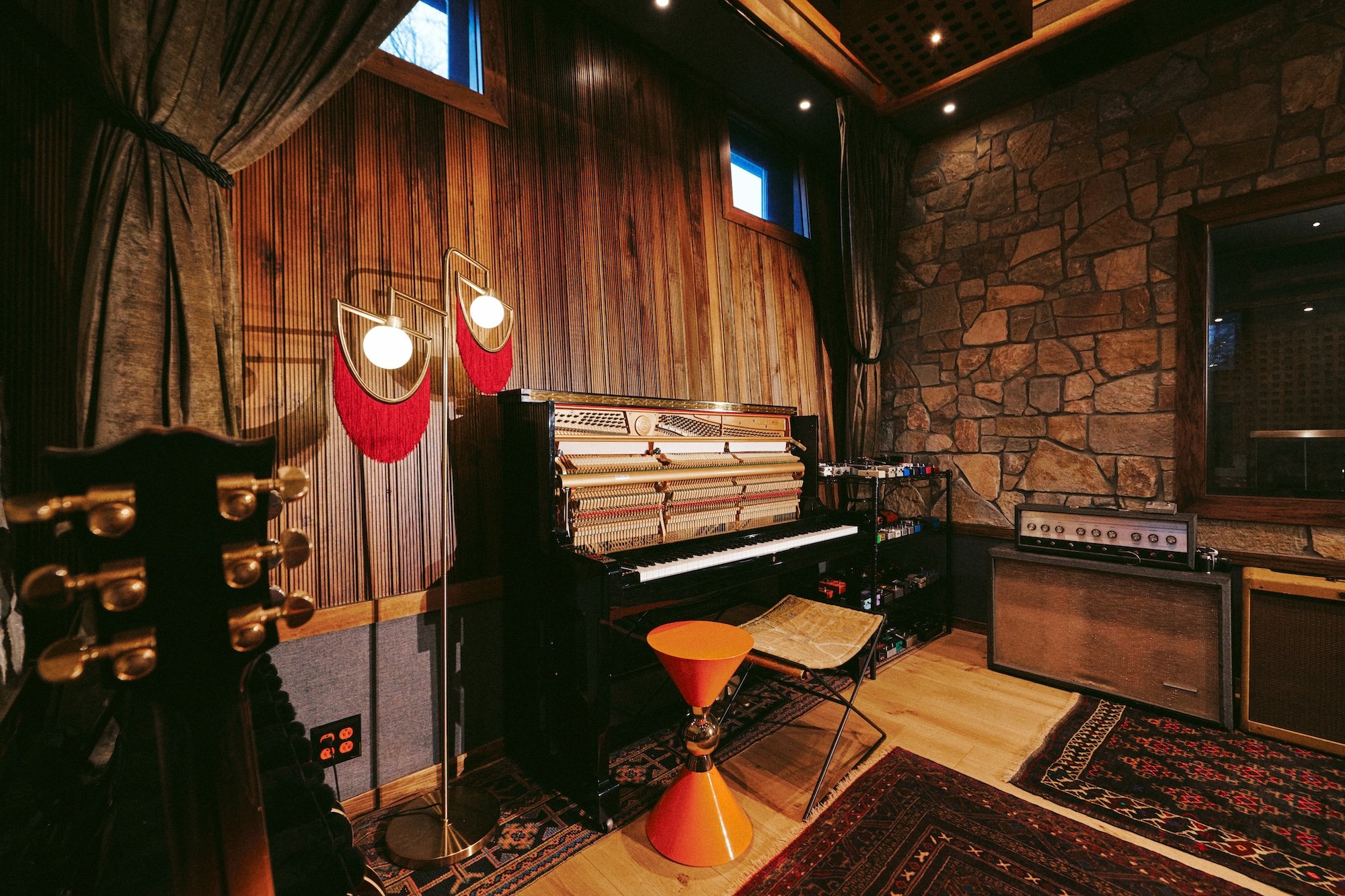

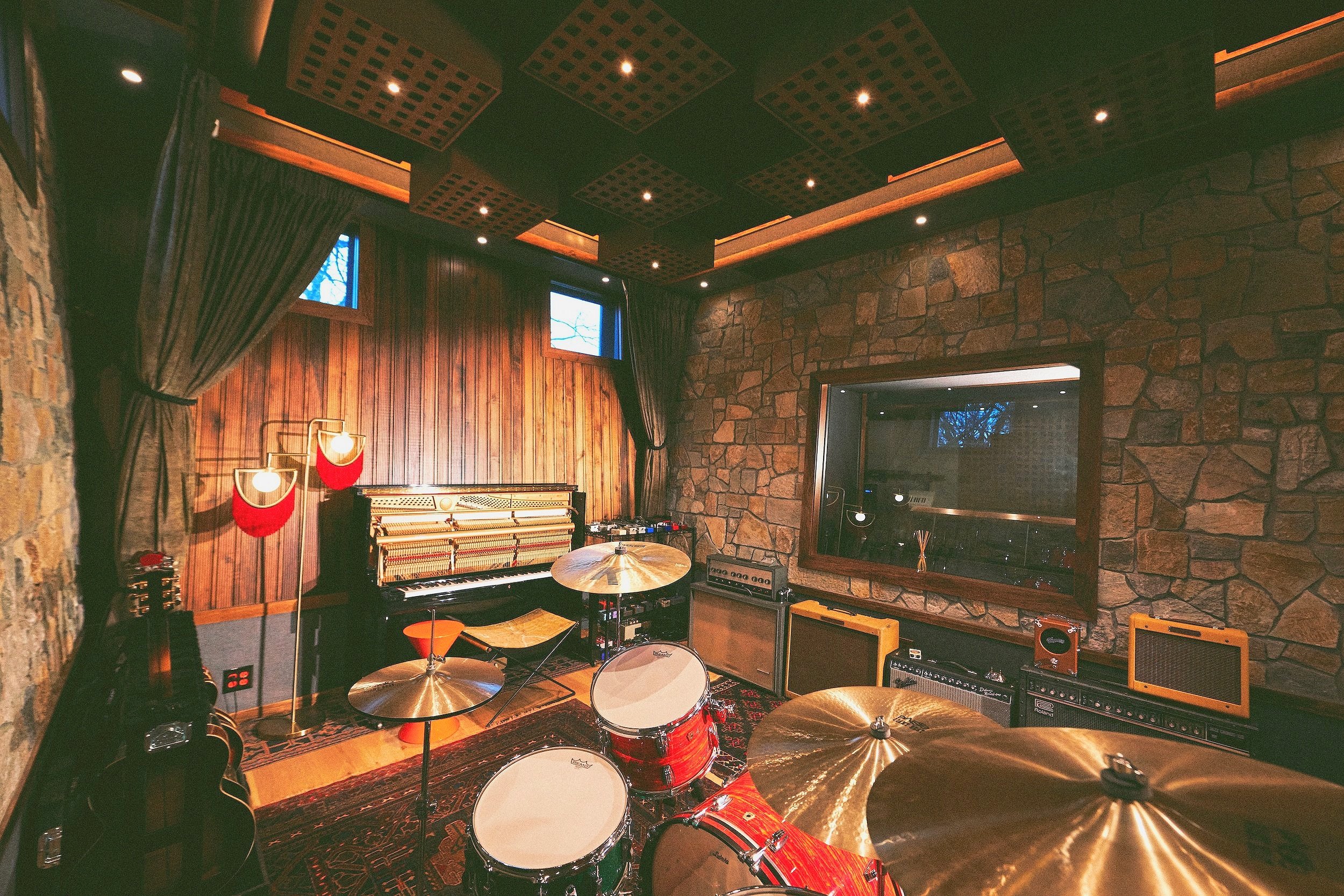

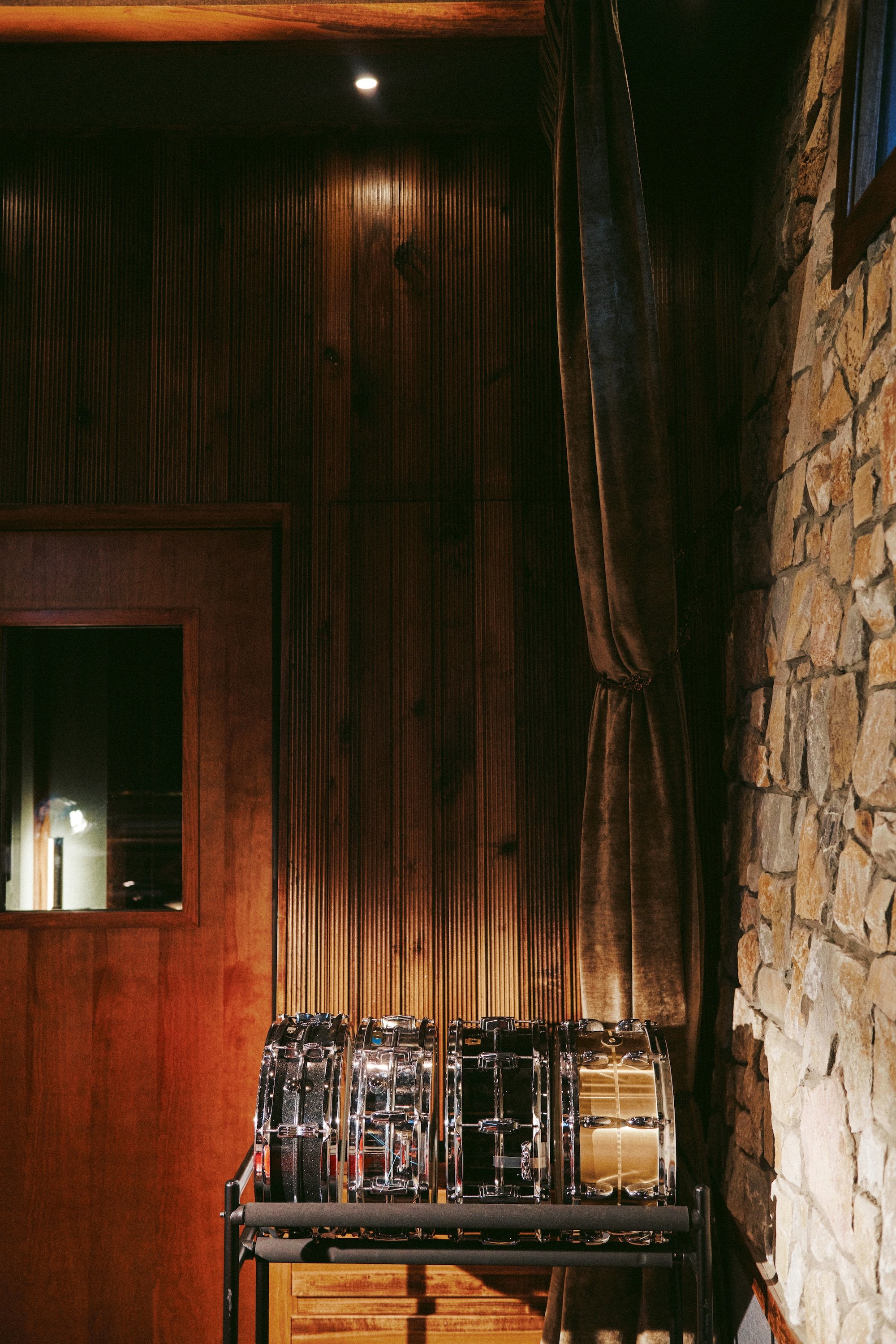

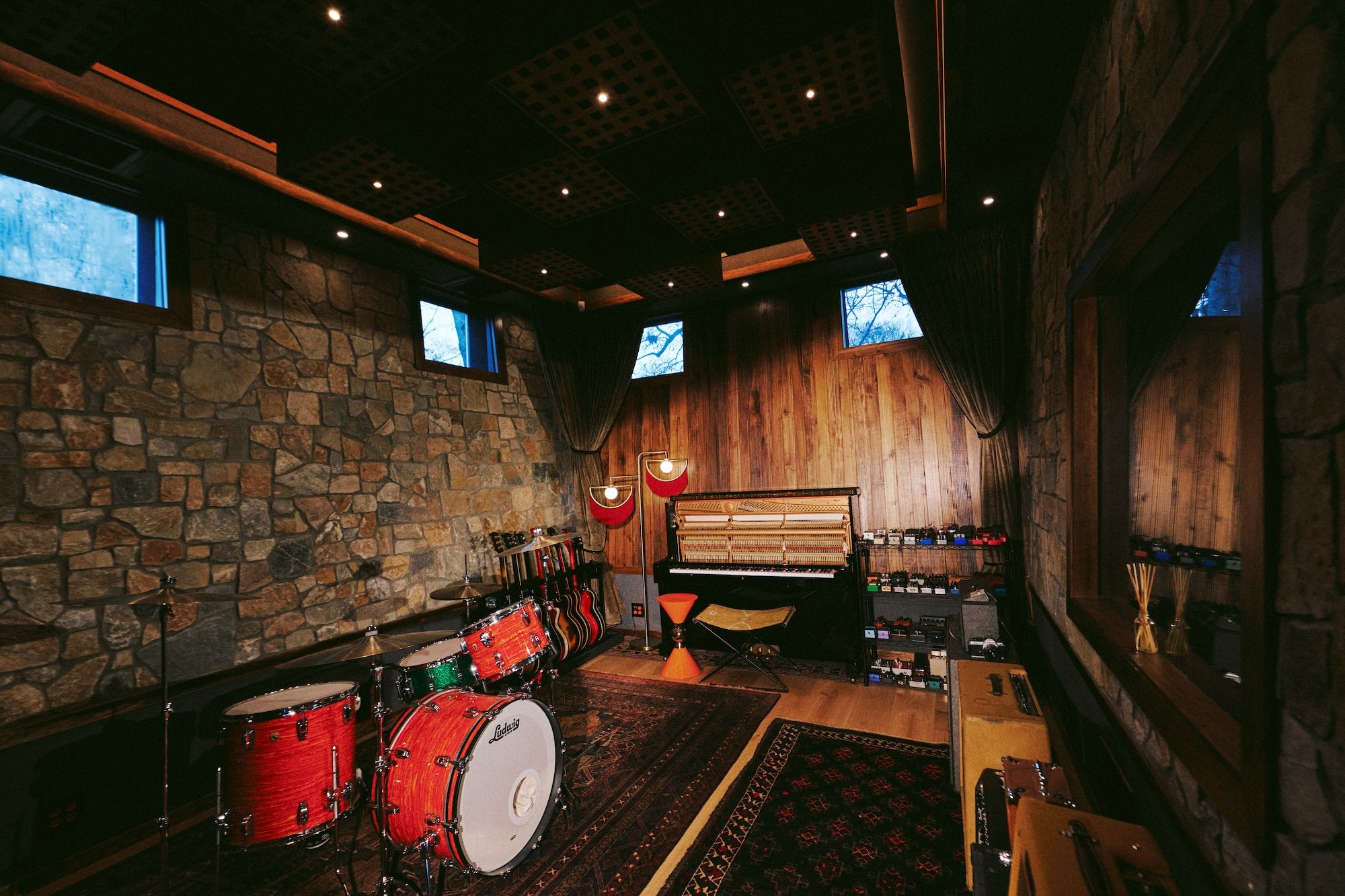

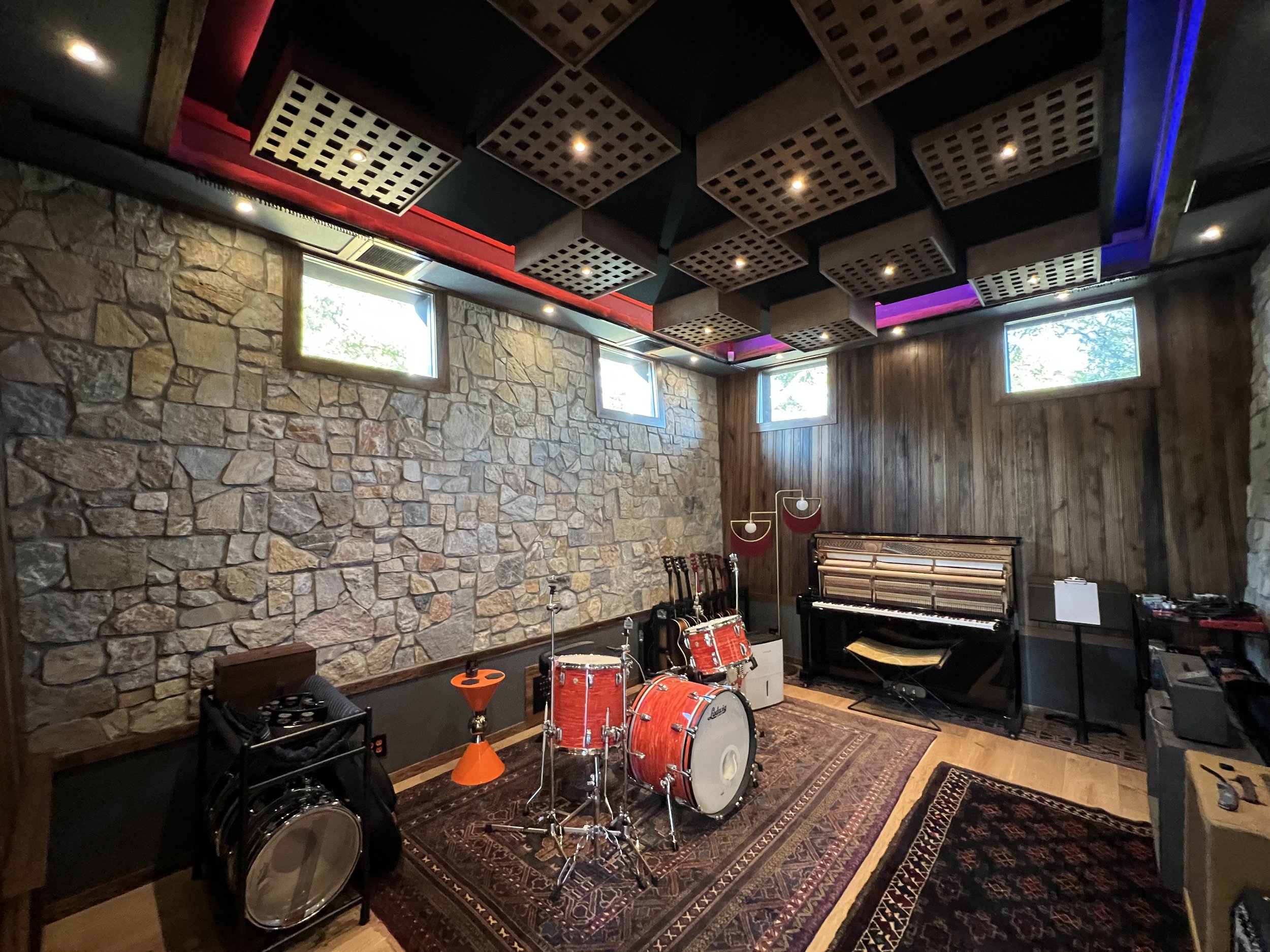

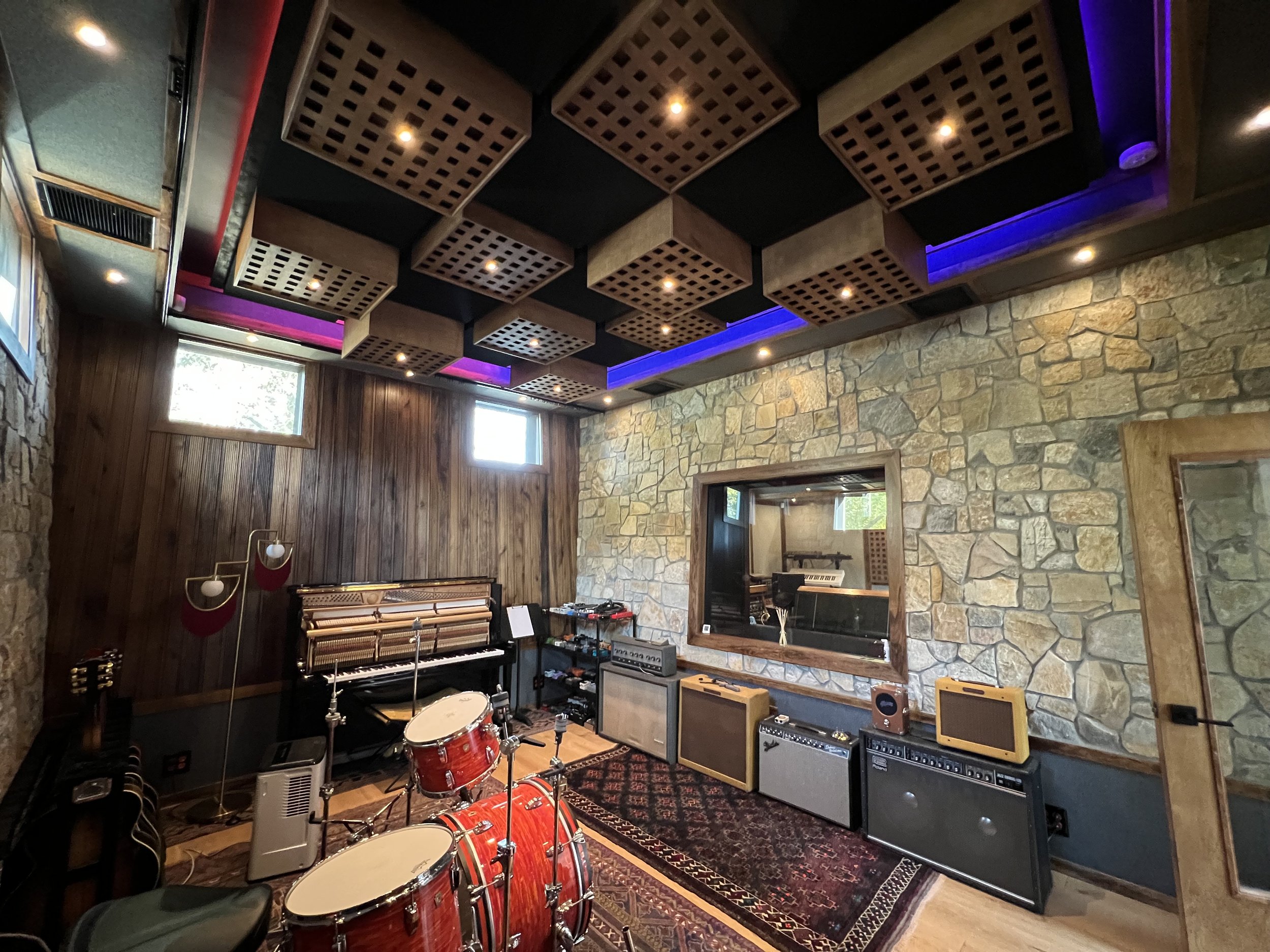

Tracking Room Acoustics Tuned by Design: with Proper Decay Time, Diffusion and Bass Trapping

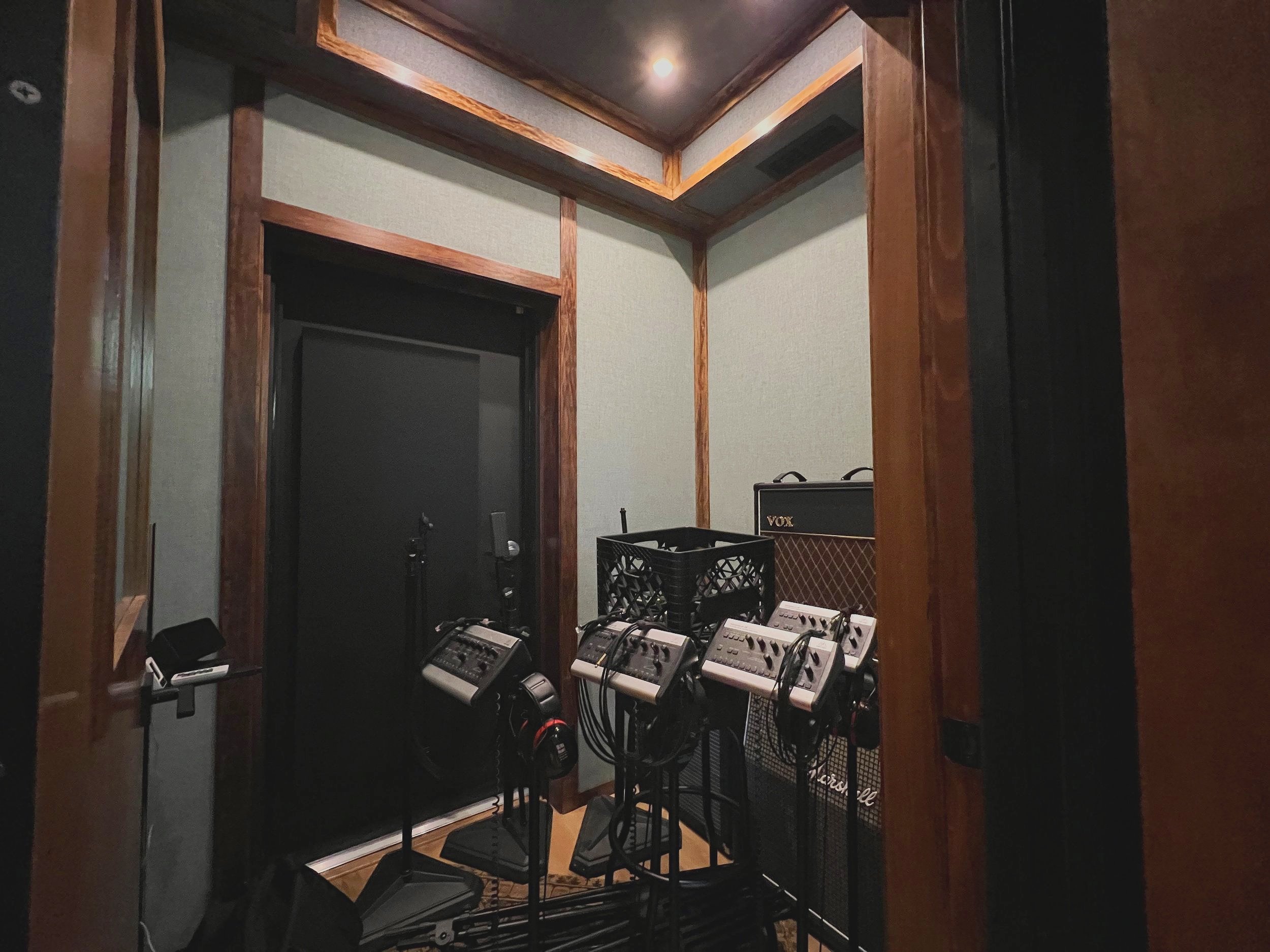

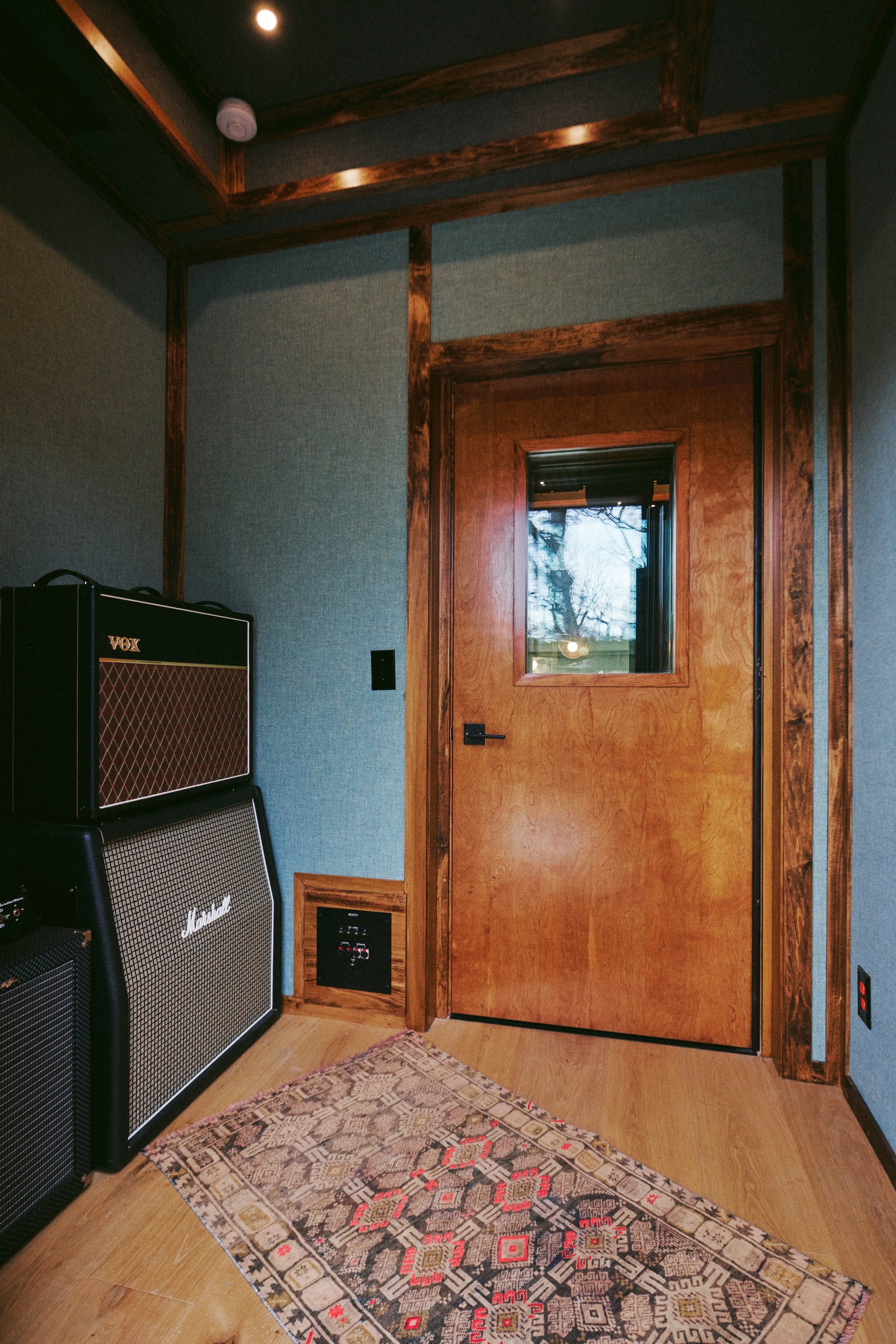

Isolation Booth with Dead Frequency Response (20Hz-20kHz)
Silent Ducted HVAC with Whole Studio Fresh Air & Dehumidification
Client
Nick Wheeler
Year
2020
Type
New Construction
Website
Wheelhouse Studio
Project Involvement
Full Service Recording Studio Design
